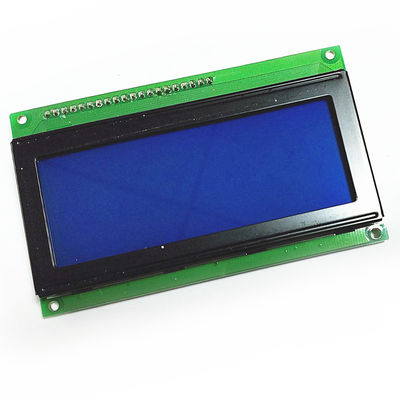

FSTN Graphic LCD Display Module

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-19264M2
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Display Type: 192x64 Dots LCD Module: FSTN (Blue)
Display Mode: Transflective / Positive Viewing Direction: 6 O'clock
Dot Size (W*H): 0.36 Mm X 0.36 Mm Dot Pitch (W*H): 0.41 Mm X 0.41 Mm
Dimensions: 100.0 (H)x 60.0 (V)x 13.0 (D)mm View Area: 84.0 (H) X 31.0 (V) Mm
High Light:

FSTN Graphic LCD Display Module

,

0.36mmx0.36mm Graphic LCD Display Module

,

0.36mmx0.36mm lcd graphic display

ROHS Graphic COB 192x64 Mini Display LCD Module FSTN for medical equipment



Product Details



Place of Origin:

Shenzhen, Guangdong, China

Display Content

192*64 DOTS

Operating Voltage

5.0 V

Driving Method

According to your request

Viewing Angle

6 o'clock

Front Polarizer

Transmissive

Rear Polarizer

Transmissive

View Area

84.0 (H) x 31.0 (V) mm

Outside Dimensions

100.0 (H)x 60.0 (V)x 13.0 (D)mm

Voltage Driving

Dynamic or static

Connector

20 Pin or according to your request

Operating Temp:

-20℃-70℃

Storage Temperature

-30℃-80℃

Package

COB

Drive Method

1/64Duty, 1/9 Bias

System Design

Lcd module related system software and hardware design accepted

Warranty

12 Month free, payed warranty lifttime

Backlight

White LED back light

LCD Module Type

Meter Module

Sample Lead Time

3-7 working days

Customize Lead Time

15-30 working days

Packaging

One module in a bag, bags in small carton foam protecting, small carton in big carton

Cetification

ISO,SGS



Product Application



Telecommunication Devices

Telephone,interphone,watch,tablet PC,radio,etc

Consumer Products

Camera,DVD player,toy, Cell Phone,game player,etc

Technical Equipment

Elevator controller,Industrial machine,etc

Office Automation

Printer,scanner,attendance machine,fax machine,etc

Home Appliances

Air-condition display,refrigerator,electric cooker,video doorbell,etc

Automobile

GPS,video player,speedometer,audio broadcast,etc

IT Products

Camera,handheld digital video,projector,media play,tablet PC,etc

Medical Equipment

Ultrasound machine,therapeutic equipment Blood pressure meter,etc



Description



Offers versatile command: screen clears (Display clear), the cursor homing (Return home), the display on / off (Display on / off), the cursor display / hide (Cursor on / off), display character blink (Display character blink) cursor shift (Cursor shift), display shift (Display shift), vertical scroll (Vertical line scroll), highlight (reverse display).
LCD module (LCM) of LCD color yellow green, blue, gray, available for customers to choose.
LCD module backlight colors are yellow-green, orange, white, red, emerald green, blue, available for customers to choose.

Use and storage temperature:



room temperature (operating temperature 0 ~ +50 °C, storage temperature -10 ~ +60 °C
wide temperature (operating temperature -20 ~ +70 °C, storage temperature -30 ~ +80 °C
Super wide temperature (operating temperature -30 ~ +80 °C, storage temperature -40 ~ +80°C).

Available for customers to choose.



Technical Service



If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.



Product Drawing

FSTN Graphic LCD Display Module 0





FAQ



Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low,STN was high.

Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.
