Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd

Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd

    • Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd
    • Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd
  • Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Qihang
    Certification: ROHS/CE
    Model Number: JXL-168132

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Tray , Standard carton
    Delivery Time: 10-15 Days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
    Supply Ability: 300000 Per Month
    Contact Now
    Detailed Product Description
    Display Type: 168x132 Dots LCD Module: LCD1: TN / LCD2: ASTN
    Display Mode: LCD1: Transmissive / LCD2: Transflective Positive Drive IC: LCD1: PCF8576C / LCD2: IST3753
    Dot Size (W*H): 0.33 Mm X 0.33 Mm Dot Pitch (W*H): 0.36 Mm X 0.36 Mm
    High Light:

    0.36 mm high end lcd

    ,

    168*132 Dots high end lcd

    ,

    168*132 Dots graphic lcd display module

    High-end Customized Two Glass LCD 168*132 Dots Graphic LCD Display COB Module

    Product Details

    Place of Origin: Shenzhen, Guangdong, China
    Display Content
    168*132 DOTS
    Operating Voltage 3.3V / 5.0 V
    Driving Method According to your request
    Viewing Angle 6 o'clock
    LCD 1 Transmissive
    LCD 2 Transflective
    View Area 71.5 (H) x 50.5 (V) mm
    Outside Dimensions 72.5 (H)x 60.5 (W)x 4.0 (H)mm
    Voltage Driving Dynamic and static
    Connection 44 Pin
    Operating Temperature -30℃-80℃
    Storage Temperature -40℃-80℃
    Package COB
    Drive Method LCD1: Static LCD2 :1/132 Duty, 1/11 Bias
    System Design Lcd module related system software and hardware design accepted
    Warranty 12 Month free, payed warranty lifttime
    Backlight

    White LED back light (side), VDD+5V.

    LCD Module Type Meter LCD Module
    Sample Lead Time 3-7 working days
    Customize Lead Time 15-30 working days
    Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
    Cetification ISO,SGS


    Product Application

    Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry

    Description

    Offers versatile command: screen clears (Display clear), the cursor homing (Return home), the display on / off (Display on / off), the cursor display / hide (Cursor on / off), display character blink (Display character blink) cursor shift (Cursor shift), display shift (Display shift), vertical scroll (Vertical line scroll), highlight (reverse display).

    LCD module (LCM) of LCD color yellow green, blue, gray, available for customers to choose.

    LCD module backlight colors are yellow-green, orange, white, red, emerald green, blue, available for customers to choose.

    Use and storage temperature:

    room temperature (operating temperature 0 ~ +50 °C, storage temperature -10 ~ +60 °C
    wide temperature (operating temperature -20 ~ +70 °C, storage temperature -30 ~ +80 °C
    Super wide temperature (operating temperature -30 ~ +80 °C, storage temperature -40 ~ +80°C).

    Available for customers to choose.

    Shipping Warranty

    We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
    DHL: 3-5 days
    UPS: 5-7 days
    EMS: 10-15 working days
    Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.

    If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.

    Technical Service

    If you have technical problem with the product you received from us, please contact us online or by email
    Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

    FAQ

    Q1: How many years for warranty can you provide?
    A1: Normally 1 year. Can be longer but price should be modified.

    Q2: How long can I get reply?
    A2: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends.

    Q3: What shall we do if we find any item missing or defective after receiving the goods?
    A3: Please contact us ASAP, we will check it and offer the best solution according to the situation.

    Q4: Is it possible to customize the LCD modules?
    A4: Yes you could let us know the concrete requirements then we will design and confirm with you.

    Q5: Is it possible we appoint the delivery agent?
    A5: Yes. Except the couriers we mentioned, we could use others as your requirement.

    Q6:Products are in stock? How long can you deliver?
    A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.

    Product Show

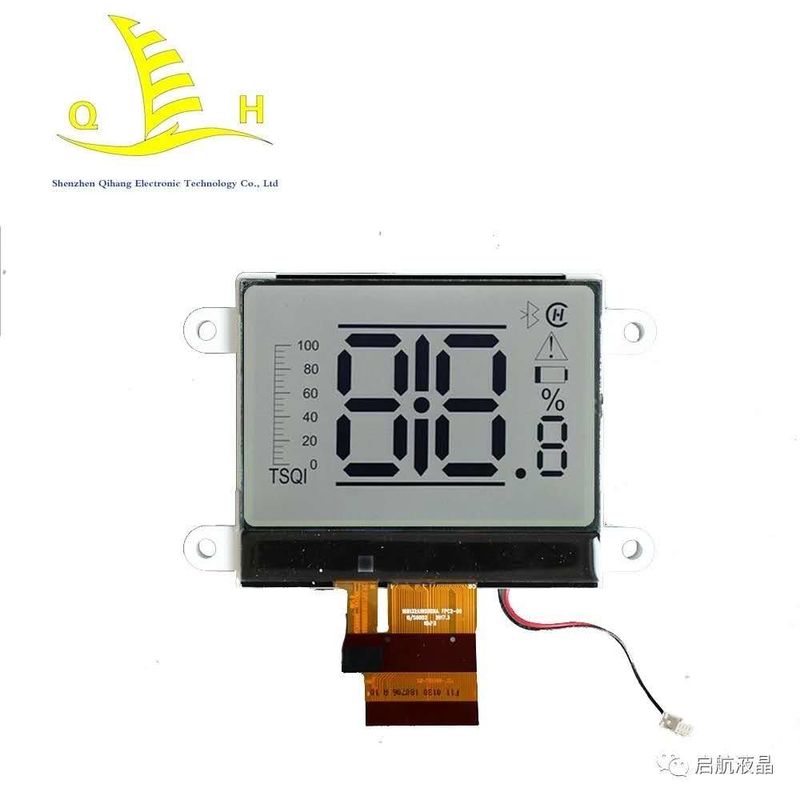

    Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd 0
    Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd 1
    Two Glass 0.36 Mm 168*132 Dots Graphic High End Lcd 2
