240x64 Graphic Module Cob Alphanumeric Display Module 22pins

240x64 Graphic Module Cob Alphanumeric Display Module 22pins

  • 240x64 Graphic Module Cob Alphanumeric Display Module 22pins
  • 240x64 Graphic Module Cob Alphanumeric Display Module 22pins
  • 240x64 Graphic Module Cob Alphanumeric Display Module 22pins
240x64 Graphic Module Cob Alphanumeric Display Module 22pins
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-24064-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Contact Now
Detailed Product Description
Material: STN LCD Display Operating Temp:: -20°C~+70°C
Storage Temp:: -30°C~+80°C Polarizer Type: Negative/Transmissive
Viewing Direction: 6 O'clock Dimension: 180.0 X 65.0 X 13.0 Mm
V.A.: 132.0 X39.0 Mm IC: T6963
High Light:

STN Alphanumeric Display Module

,

22pins Alphanumeric Display Module

,

240x64 Alphanumeric Lcd Display

240x64 Graphic module cob Alphanumeric panel 22pins display module



Product Detail



Applicaion

Alll kinds of meters

Display Content

digits+dots+patterns

Operating voltage

3.3V / 5.0V

Viewing angle

6 o'clock

LCD mode

STN LCD module

Display mode

Positive / Transflective

Conecting mode

Metal pin

Backlihgtlight

White

Voltage driving

Dynamic or static

DOTS

128*64

Operating voltage

-20°C~+70°C

Storage voltage

-30°C~+80°C

Package

COB

OEM/ODM

Accecpted

Dimension

180.0 X 65.0 X 13.0 mm

V.A.

132.0 X 39.0 mm

System design

Lcd module related system software and hardware design accepted

Warranty

12 moths free

Backlight

LED (White)

LCD Module type

Metering Module

Sample lead time

3-7 working days

Customize lead time

15-30 working days

Packaging

One module in a bag, bags in small carton foam protecting, small carton in big carton

Cetification

ISO,SGS



Introduction



JXL-24064-2 LCM is a graphic dot matrix liquid crystal display module with Chinese character library. It is mainly composed of controller T6963 (both row and column drive functions), column driver T6963 and 240×64 full dot matrix liquid crystal display.
Can display letters, numeric symbols, Chinese font and self-defined map block display, the font ROM contains 8192 (GB-2312)16×16 dot matrix of Chinese font and 160 16×8 dot matrix half wide character font,
In addition, the drawing display screen provides a 64×240 dot matrix drawing area (GDRAM) and 240-point ICON RAM, which can be mixed with the text screen display, and the Cgram contained in its controller provides 4 groups of software programmable 16×16 character creation functions.
Main technical parameters and performance:
1. Power supply operating range: 2.7V to 5.5V
2
. Provide 8-bit MPU interface
3
. 64 * 16-bit byte display RAM (DDRAM up to 16 bits * 4 lines)
4
. 64× 240-bit drawing display RAM (GDRAM)
5
. 2M-bit Chinese font ROM (CGROM) provides a total of 8192 Chinese fonts (16×16 dot matrix)
6
. 16K-bit half-wide font ROM (HCGROM) provides a total of 128 symbol font (16×8 dot matrix)
7
. 64× 16-bit font generation RAM (Cgram)
8
. with drawing and text picture mixed display function
9
. Provide multi-function instructions
- Screen clearance
- Cursor return
- Display on/off
- Cursor show/hide
- Display character flashing
- Cursor return
- Display homing position
- Vertical screen rotation
- Back-white display
- Sleep pattern



Shipping Warranty



We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 2 - 5 days
UPS: 3 - 7 days
EMS: 7 - 15 working days
China post / HongKong Airmail: 7 - 25 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.



Packaging & Delivery



Lead Time :

Quantity(Pieces)

2 - 3000

>3000

Est. Time(days)

7

To be negotiated



Top 10 Industries of the company



Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry



FAQ



Q: Order process.

A: Customers place an order →Send out of PI → Customer payment → Confirm receipt and reply delivery
→ we negotiate and confirm shipping method → shipping → tracking logistics → customer confirm receipt.

Q: Lead time ( after payment is confirmed)
A: Sample: 7 working days
Mass production : 3 - 60 working days

Q: Payment.
A: T/T , Paypal, Western union, L/C, Credit card, and Cash.

Q:RMA Process
A:The customer submits the return to the salesman (with picture/video/bad sample)
→ the preliminary judgment of the project (all returns or partial returns or direct scrap)
→ confirmation → of the treatment method → confirmation of the mode of transport
→ return → receipt of return analysis And report out
→ confirm the treatment with the customer

Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of LIMITED WARRANTY)


Product Show

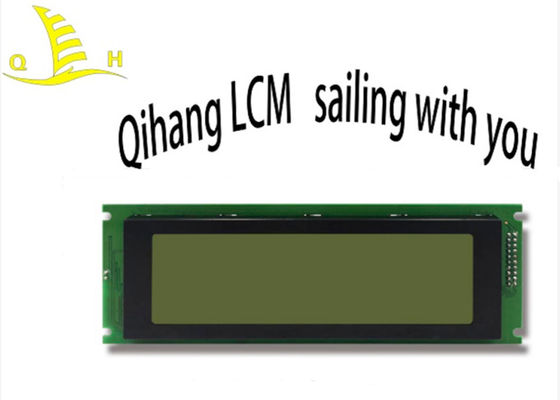

240x64 Graphic Module Cob Alphanumeric Display Module 22pins 0
