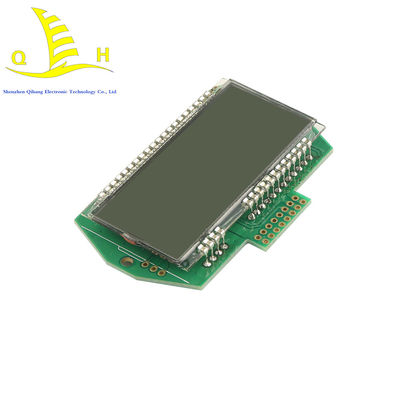

STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module

STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module

  • High Light

    STN lcd seven segment display

    ,

    1/4 DUTY lcd seven segment display

    ,

    1/4 DUTY 7 segment lcd display arduino

  • Material
    TN / STN LCD Screen Module
  • Operating Temp
    -20℃-70℃
  • Storage Temp
    -30℃-80℃
  • Front Polarizer
    Transmissive, Positive
  • Rear Polarizer
    Transmissive, Positive
  • Viewing Direction
    6 O'clock
  • LCD Operating Voltage
    5.0v (3V-5V.>2.8v Is Ok)
  • Drive Mode
    1/4 DUTY ,1/3 BIAS
  • Name
    STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module
  • Warranty
    12months
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-M17
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module

STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module

Product Details

Name STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module
Place of Origin Guangdong, China
Control IC HT1621
Operating Voltage 5.0V
Driving Method according to your request
Viewing Angle 6 O'clock
LCD Mode STN / TN
Display Mode Transmissive / Positive /Glare
View Area 62.0 (L)*27.0 (W)mm
Outside Dimensions 76.8 (L)*42.8 (W)*4.8 (H)mm
Voltage Driving Dynamic or Static
Operating Temperature -20℃-70℃
Storage Temperature -30℃-80℃
Package COG + FPC
OEM/ODM Accecpted
System Design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
Backlight White LED
LCD Module Type Meter Module
Sample Lead Time 3-7 working days
Customize Lead Time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

Application

* Instrument, meter: gas meter, water meter, bus system, tanker count

* Communication equipment: all kinds of IC card phones, VoIP phones, IP phones

* Tax system: Tax control machine

* Industrial control equipment: automatic control

* Various human-machine interfaces, handheld devices, etc

* Communication equipment: all kinds of IC card phones, VoIP phones, IP phones

FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1) Product information-Quantity, part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Product Drawing

STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module 0

STN HTN FSTN Static Dots 1/4 DUTY Lcd Seven Segment LCD Display Module 1
