Customize LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module

Product Details

Place of Origin: Shenzhen, China

Brand Name: Qihang

Certification: ROHS/CE

Model Number: JXL-12864-3

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Tray , Standard carton

Delivery Time: 10-15 Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability: 300000 Per Month

Get Best Price
Highlight:

Transmissive Alphanumeric LCD Display Module

,

6 o'clock Alphanumeric LCD Display Module

,

6 o'clock transmissive lcd display

Material:
STN Blue LCD Display Module
Operating Temp::
-20℃-70℃
Storage Temp::
-20℃-70℃
Polarizer Type:
Transmissive / Negative
Viewing Direction:
6 O'clock
Dimension:
118 (L) * 87 (W)* 11.6 (H) Mm
V.A.:
84 (L)*55 (W) Mm
Drive Mode:
1/64 DUTY ,1/9 BIAS
Name:
LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module
Warranty:
12months
Material:
STN Blue LCD Display Module
Operating Temp::
-20℃-70℃
Storage Temp::
-20℃-70℃
Polarizer Type:
Transmissive / Negative
Viewing Direction:
6 O'clock
Dimension:
118 (L) * 87 (W)* 11.6 (H) Mm
V.A.:
84 (L)*55 (W) Mm
Drive Mode:
1/64 DUTY ,1/9 BIAS
Name:
LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module
Warranty:
12months
Customize LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module

LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module

Product Detail

Name LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module
Applicaion Alll kinds of meters
Display Content digits+dots+patterns
Operating voltage 3.3V /5.0V
Driving method according to your request
Viewing angle 6H
LCD mode STN
Display mode Transmissive / Negative
Conecting mode Metal pin or rubber or other
Backlihgtlight Blue
Voltage driving Dynamic or static
DOTS 128*64
Operating voltage -15℃-65℃
Storage voltage -20℃-70℃
Package COB
OEM/ODM Accecpted
System design Lcd module related system software and hardware design accepted
Warranty 12 moths free
Backlight Blue backlight
LCD Module type Metering Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS

Introduction

We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.

1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.

2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

Packaging & Delivery

Quantity(Pieces) 1 - 2 3 - 100 >100
Est. Time(days) 7 15 To be negotiated

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

FAQ

Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Product Show

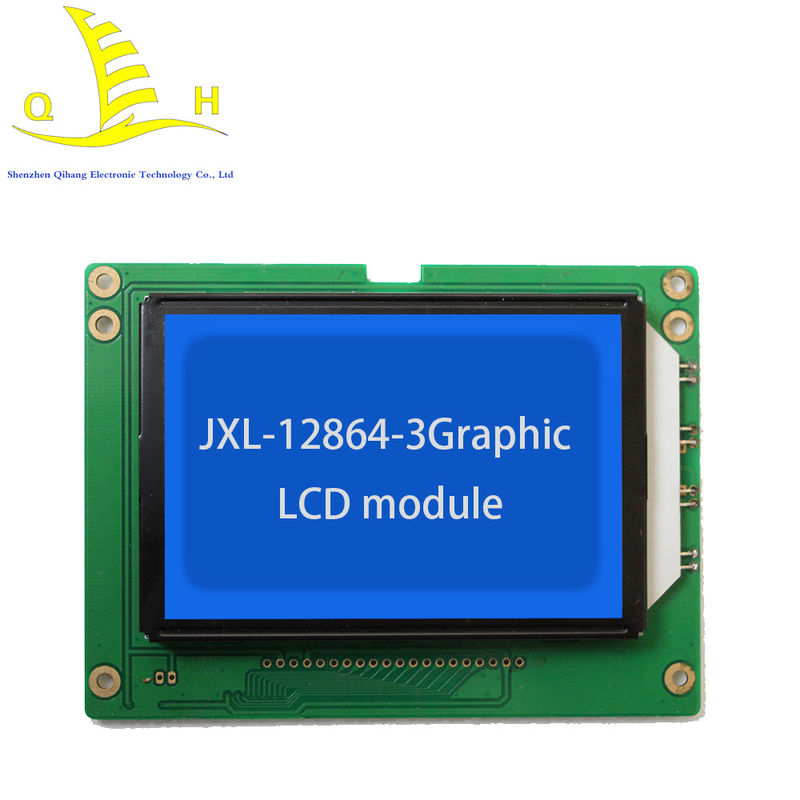

Customize LCD 6 O'Clock Transmissive Alphanumeric LCD Display Module 0
