2.05" 128x32 SH1106G 16.7M Oled Dot Matrix Display

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-OEL9M0088-W-E
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Resolution: 128 (H) X 32(V) Diagonal Size: 2.05 Inch
Active Area (mm): 50.54 (W)mm X 12.62 (H)mm Panel Outline Dimension (mm): 55.60(W)mm X 21.80(H)mm
Drive IC: SH1106G Thickness: 1.45mm
Pixel Pitch: 0.395 (W)mm X 0.395(H)mm Pixel Side: 0.373(W)mm X 0.373(H)mm
Highlight:

2.05" 128x32 oled dot matrix display

,

SH1106G oled dot matrix display

,

SH1106G esp8266 oled display

2.05" 128x32 Resolution SH1106G 16.7M Hight Birghtness OLED Display Module

Quick Details

Items

Specification

Unit

Diagonal Size

2.05

Inch

Resolution

128 (H) x 32(V)

Dots

Active Area

50.54 (W) x 12.62 (H)

mm 2

Outline Dimension

55.60(W) x 21.80(H)

mm 2

Pixel Pitch

0.395 (W) x 0.395(H)

mm 2

Pixel Size

0.373(W) x 0.373(H)

mm 2

Driver IC

SSD1309Z

-

Display Color

White

-

Gray Scale

1

Bit

Interface

Parallel / SPI/ IIC



IC Package Type

COG

-

Module Connecting Type

COG with Flex for Soldering

-

Thickness

1.45±0.15

mm

Weight

TBD

g

Duty

1/32

-
Operating Temperature -20℃-70℃
Storage Temperature -30℃-80℃

Quality Control

Qihang always adheres to the "quality first" concept, strictly controls the various processes of production operations, and conducts 100% inspection of shipped products.

Packing & Delivery

1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

Sample Policy

Contact us for information regarding our sample policy

Product replacement and warranty

If you have any prodcut quality problem, you can send it back to us with the original condition,we will repair or exchange new one for you.
If you have any using problem of the products which buy from Qihang, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.
Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.

Product Application

We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.

1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.

2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

FAQ

Q. What's your payment term?
A. We have T/T ,L/C,West Union,etc.


Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Q: What's your payment method?
A: We usually accept the payment methods include T/T, D/P, Western Union and Paypal. 30% deposit in advance and balance before shipping upon the payment amount.



Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.

Q: What about the delivery time?
A: The LCD products need 3-6 weeks to be made after receive deposit.

Q: Do you offer custom solution?

A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.


Q: What's your shipping method?
A: We provide comprehensive shipping methods.Display
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.

Product drawing

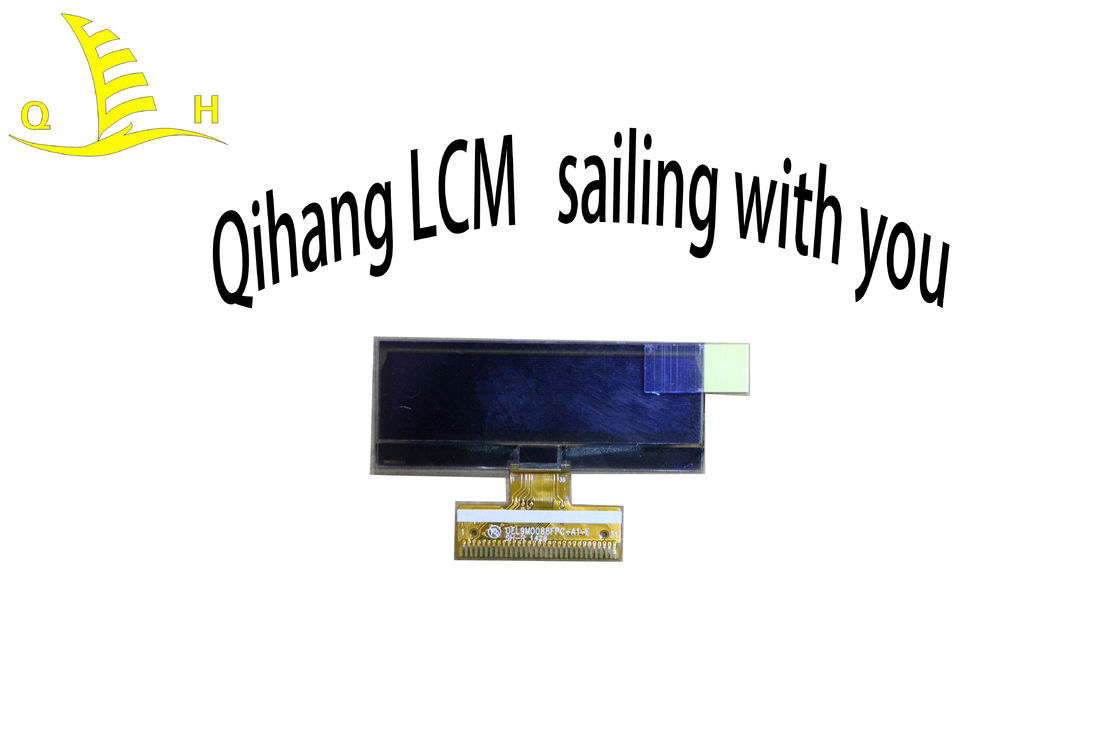

2.05" 128x32 SH1106G 16.7M Oled Dot Matrix Display 0



2.05" 128x32 SH1106G 16.7M Oled Dot Matrix Display 1
