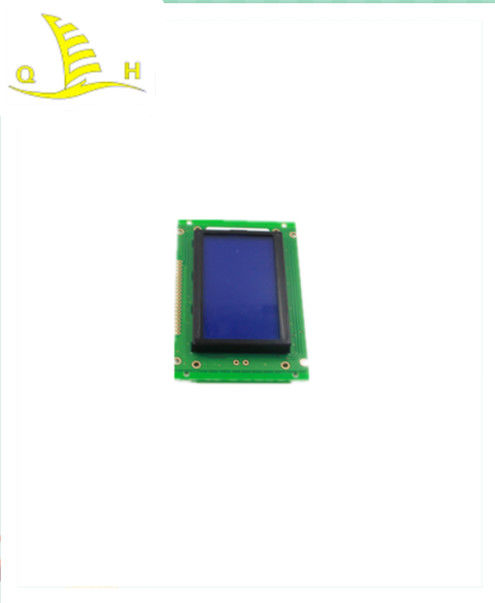

12864 FPC Connector With White LED Backlight For Measuring Equipment

12864 FPC Connector With White LED Backlight For Measuring Equipment

  • High Light

    128X64 Graphic Lcd Module

    ,

    STN Graphic Lcd Module

    ,

    SPI Serial Lcd Display Module

  • Material
    STN (Blue), Negative
  • LCD Display Dots
    128*64 Dots Matrix
  • Outside Dimensions
    109.0 (L)mm*70.0(W)mm*12.5 (H)mm
  • View Area
    71.9 (L)mm*39.9 (W)mm
  • Dot Pitch (W*H)
    0.52 Mm X 0.52 Mm
  • Dot Size (W*H)
    0.48 Mm X 0.48 Mm
  • Operating Temp
    -20℃-70℃
  • Storage Temp
    -30℃ - 80℃
  • Front Polarizer Type
    Transmissive, Adhesive (Anti-UV)
  • Back Polarizer Type
    Transmissive, Adhesive
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-12864-F03
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

12864 FPC Connector With White LED Backlight For Measuring Equipment

12864 FPC Connector With White LED Backlight For Measuring Equipment

Product Details



Name 12864 FPC Connector With White LED Backlight For Measuring Equipment
Applicaion All kinds of meter
Display Content
128x64 DOTS
Operating voltage 5.0 V
Driving method According to your request
Viewing angle 6 O'clock
Display mode Positive
View Area 71.9 (L)mm*39.9 (W)mm
Outside Dimensions 109.0 (L)mm*70.0(W)mm*12.5 (H)mm
Voltage driving Dynamic or static
Connector COB
Drive Method 1/32 Duty, 1/5 Bias
Front Polarizer Type Transmissive, Adhesive (Anti-UV)
Back Polarizer Type Transmissive, Adhesive
System design Lcd module related system software and hardware design accepted
Warranty 12 months free, payed warranty lifttime
Backlight White LED
LCD Module type Graphic LCD Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS



Product replacement and warranty



If you have any prodcut quality problem, you can send it back to us with the original condition,we will repair or exchange new one for you.

If you have any using problem of the products which buy from Qihang, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.

Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.


Packaging and delivery


Packing Details : Packing with box, it also can package as your request

Delivery Details : 3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register



Technical Service


If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.



FAQ


1. Q: How can I get the samples? Standard sample and Custom.
A: Custom sample : Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect

2.Q: How long can I expect to get the sample?
A: Standard sample: 3 work days after confirming the order.
Custom sample: according to the draw base on 5-20 days

3.Q: Can you design the LCD in accordance with our demand?
A: Yes,.We will give you the best tooling charge.

4. Q:. What is the warranty?
A: One year

5.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.

1)Product information-Quantity,part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.


4)Forwarder's contact details if you have any in China.





The competitive advantage of product line



Shenzhen Qihang Electronic Technology Co., Ltd. is a collection of research and development, design, production, sales and service in one of the modern high-tech enterprises. The company is mainly engaged in the research and development, production and sales of LCD, LCM and new products.




Product drawing


12864 FPC Connector With White LED Backlight For Measuring Equipment 0
