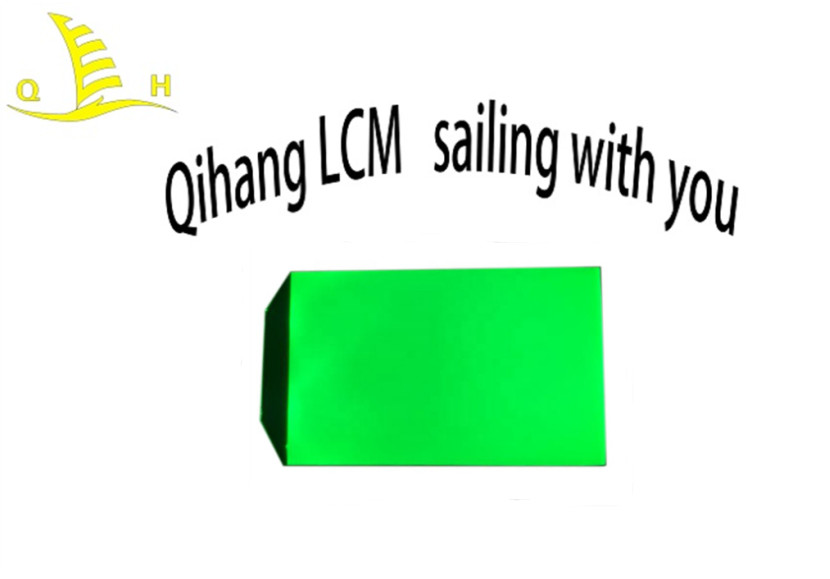

SMD 1000cd/M2 3W LCD Display LED Backlight RGB LED for lcd module

SMD 1000cd/M2 3W LCD Display LED Backlight RGB LED for lcd module

  • High Light

    1000cd/m2 LCD Display LED Backlight

    ,

    LCM LCD Display LED Backlight

    ,

    3W SMD LCD Display LED Backlight

  • Type
    LED Backlight
  • Luminous
    High Bright
  • Operating Temperature
    -30℃~+80℃
  • Storage Temperature
    -40℃~+80℃
  • Emitting Color
    White Red Yellow Blue Green
  • Power
    3W
  • Shape
    Customer's Requires
  • Viewing Angle(°)
    120
  • Brightness
    100-1000 Cd/m2
  • Application
    LCD Display Module
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    QH11847
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    3000000 Per Month

SMD 1000cd/M2 3W LCD Display LED Backlight RGB LED for lcd module

SMD 1000cd/M2 3W LCD Display LED Backlight RGB LED for lcd module



Quick Details



Warranty(Year): 1-YEAR

Type: LED Modules

Lighting solutions service: LCD display module

Place of Origin: Guangdong, China

Brand Name: Qihang

Color: White Red Yellow Blue Green

Brightness: 100-1000 cd/m2

OPERATING TEMP: -30℃-----80℃

STORAGE TEMP: -40℃-----80℃

OPERATING VOLTAGE: 2.8v-3.0v

Size: Customed LED backlight



Detail introductions



Our Led backlight is using the high quality,uniformity,stable voltage,current led,small brightness and wavelength scope as the
light source.It can be round led backlight shape,many single colors availble or RGB led backlight available, use the acrylic as
the main material for our led backlight.



The major material is acrylic sheet or say PMMA sheet with molding designed dots or screen printing. It can be slim led backlight.



Packaging & Delivery



Selling Units:  Single item

Single package size: 10X10X4 cm

Single gross weight: 0.200 kg

Package Type:    390*342*495MM
                            390*342*205MM

Lead Time :

Quantity(Pieces)

1 - 10

11 - 1000

1001 - 5000

>5000

Est. Time(days)

15

20

25

To be negotiated



Notes



Custom must supply the following Specification,that we can quote immediately and exact.

1) Custom size of the backlight board;

2) Active Area size of the LED Backlight;

3) Luminance of the backlights;

4) LED light type like DIP LED, SMD or FPC;

5) Thickness of the back lighting;

6) A picture of the appearance;

7) Color of the LED light

8) Input Voltage and Connection Type



Supply Ability



100000 Piece/Pieces per Month



Quality Control



1) Before the order is confirmed, we would check all the materials, they should be the same as the mass production.
2) We will keep tracing of every process in the manufacturing from the begining to the end.
3) Every product quality checked & cleaned before packing.
4) Before bulk delivery, clients could send one QC or point the third party to check the quality.
5) After the delivery, we will keep tracing of the product quality and we will try our best to help the clients when the problems happen.



Product drawing

SMD 1000cd/M2 3W LCD Display LED Backlight RGB LED for lcd module

SMD 1000cd/M2 3W LCD Display LED Backlight RGB LED for lcd module



FAQ



1. This LED Backlight is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the LED Backlight type , if you need to modify the outline size which needs to open new tooling as customized one. we will analyze and share with you about the tooling specification/drawing. After you approve the specification/drawing ok , then we will start to open the tooling after your payment, After samples approved by you, then start the mass production.

2. This LCD Backlight is yellow-green, but I want blue backlight.
Answer: No problem, we can change the colors for you basic on your demand.



3. I want customize a new LED Backlight. Can you do?
Answer: Yes, we can. Please send your specification /drawing paper. If you have not, please kindly advise the outline size of the LED display, luminance, voltage, glass thickness if need backlight or PCB board with IC, We will evaluate the cost and give you price soon.



4. I want to ask the LED Backlight outline size is 250x30x1.5mm...…?
Answer: No problem. Firstly, pls send us your specification /drawing paper or samples,; we will introduce the suitable one if it is standard products.
Or we can modify based on your own drawing and requirement.


5. What is leading time for tooling?
Answer: Normally it will takes10 to 15 days after drawing paper confirmation and tooling payment, we can tell you the exact time when you confirm the drawing paper. We will provide 10-15pcs free samples for your approval after open tooling.

6. Can you send us samples for checking?
Answer: Yes,. Samples order is available if standard products or if we have stocks at hands.
If customize LED backlight, free samples (10-15pcs) can be offered you by free of charger.

7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. If we can finish earlier, we will send you information in advanced.
