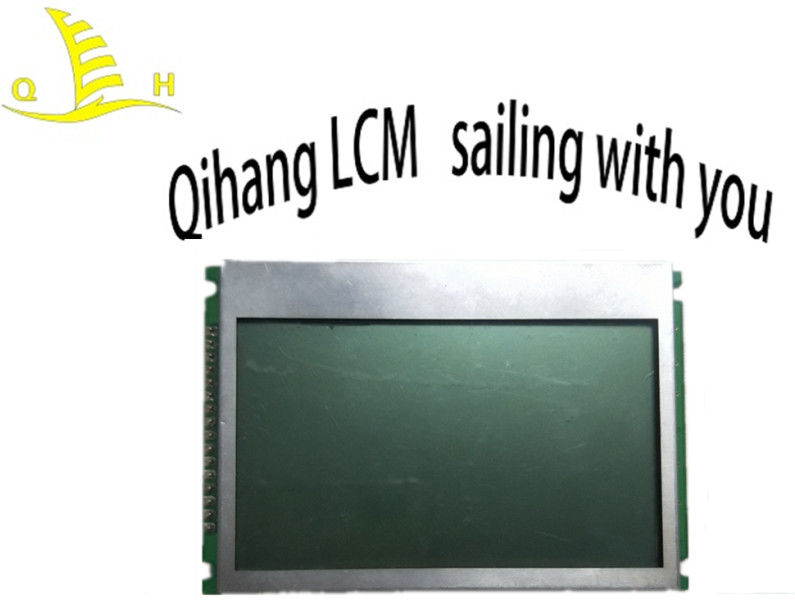

240x160 Dots 6 O'Clock LCD Graphic STN FSTN COG LCD Display Module

240x160 Dots 6 O'Clock LCD Graphic STN FSTN COG LCD Display Module

  • High Light

    240x160Dots LCD Graphic Display


    6 O'clock LCD Graphic Display


    FSTN Graphic Lcd Display Module

  • Display Type
    240*160 Dots
  • LCD Module
    FSTN LCD Module
  • Display Mode
    Transflective Display
  • Polarizer Type
  • Outside Dimensions
    93.0×64.2×15.8 (MAX) Mm
  • View Area
    78.5×47.5 Mm
  • Operating Temperature
    (-20 To +70) ℃
  • Storage Temperature
    (-30 To +80) ℃
  • Viewing Direction
    6 O'clock
  • Package
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 pcs
  • Price
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

240x160 Dots 6 O'Clock LCD Graphic STN FSTN COG LCD Display Module

240x160 Dots 6 O'Clock LCD Graphic STN FSTN COG LCD Display Module


Product Details


Name LCD Graphic STN FSTN COG LCD Display Module
Place of Origin: Guangdong, China
Display Content
240*160 DOTS
Operating Voltage 5.0 v
Driving method according to your request
Viewing angle 6:00 O'clock
Display Positive
Polarizer Transflective
View Area

78.5×47.5 mm

Outside Dimensions 93.0×64.2×15.8 (MAX) mm
Voltage Driving Dynamic or static
Connector According to your request
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Package COG
Drive Method 1/160 Duty, 1/12 Bias
System Design Lcd display module related system software and hardware design accepted
Warranty one yefree, payed warranty lifttime

White LED Backlight (side)

LCD Module Type Counter Module
Sample Lead Time 1 - 7 working days
Customize Lead Time 15 - 30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS, CE, RoHS


This product is 240160 graphic lattice module, currently there are mask binding, patch two processes, product performance is stable; With RA8835 control; The on-board negative voltage circuit, the common blue screen is given priority to the configuration is high brightness white LED side backlight, the display effect is blue background white characters, noble and elegant. It can be matched with black characters on white background (black and white film is displayed) or gray film LED white light display as blue characters on gray background. It is often used outdoors or in low temperature environment.


Product Application


1. Electronic Products: Generator Controller, Bracelet, Watch, Recording Pen, Water Meter, Electricity Meter, Electric Actuator, Radio, Audio, Small Appliances, Gas Meter.

2. Intelligent Home System, Building Intercom System, Intelligent Controller.

3. Industrial Automation Instrument: Flowmeter, Thermometer, Control Instrument, Pressure, Level Meter, Microcomputer Protection Device, Solar Inverter.

4. Locker, Bag Locker, Bag Locker

5. Medical Equipment: Oxygen Generator, Blood Pressure Meter, Infusion Pump, Analytical Instrument, Biochemical Instrument.

6. Operating Gas Detector: Fire Alarm, Gas Composition Analyzer, Transmitter, Sensor, Ozone Monitoring System, Calibration InstrumentAccess Control, One Card, Attendance System, Fingerprint.


Top 10 Industries of the company:


Communications Products, Vehicle Instrumentation, Electrical Industry, Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Home Appliances Industry


Technical Service


If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.




Q1. What is your terms of payment?
A: 30% in advance. Samples would be shipped in 1 - 5 work days after payment received, finally depends on quantities.

Q2. What is your terms of packing? And do you offer BOM list service?Can I send my bom list to you?

A: We pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Of course, we offer BOM list service. Actually, we have been doing that many years.Welcome your bom list to us.
Q3. What is your terms of delivery?
A: EX factory.
Q4. How about your delivery time?
A:Generally, goods would be shipped in 1-5 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the
courier cost.
Q6. Do you test all your goods before delivery?
A: Of course , we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and
we sincerely do business and make friends with them,no matter where they come from.

Product Drawing


240x160 Dots 6 O'Clock LCD Graphic STN FSTN COG LCD Display Module 0
240x160 Dots 6 O'Clock LCD Graphic STN FSTN COG LCD Display Module 1
