5.0 Inch RTP Resistive Touch Panel 4 Wire 15:9 For 800x480 TFT

5.0 Inch RTP Resistive Touch Panel 4 Wire 15:9 For 800x480 TFT

  • High Light

    5.0 Inch Resistive Touch Panel


    800x480 TFT Resistive Touch Panel


    4 Wire Resistive Touch Panel

  • Display Size
    5 Inch Resistive Touch Panel
  • Type
  • Hardness
  • Resolution
    800*480 Dots
  • Transparency
  • Response Rate
  • Touch The Linear
  • Interface
    4 Wire
  • Operate Temp
    -20°C~ 70°C
  • Storage Temp
    -30°C~ 80°C
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
  • Model Number
    JXL-5.0 RTP-2
  • Minimum Order Quantity
    1 pcs
  • Price
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

5.0 Inch RTP Resistive Touch Panel 4 Wire 15:9 For 800x480 TFT

5.0 inch RTP Resistive Touch Panel 4 Wire 15:9 used for 800*480 TFT


Product detail


5 " / 5 inch 4 wire resistive touch screen, 15:9 widescreen universal

Type: Resistive

Display Size: 5" / 5 Inch

Supplier Type: OEM / ODM

Place of Origin: Guangdong, China

Model Number: JXL-5.0 RTP-2

Brand Name: Qihang

Touch screen type: 5 inch Resistive Touch Panel

Compatible for TFT: Available

Transparency: ≧78%

Handwritten screen out screen.

Industrial industrial control medical level.

● Touch screen size: see product picture label (if you need detailed drawings, please contact customer service).

● Matching LCD screen:

Matching LCD screen resolution: 800*480, etc.

Matching LCD AA area size: 108*64.8mm, etc.

Matching LCD screen model: all the 5 "15:9 widescreen LCD screen in AA area above can be used universally.

● Specification parameters:

Touch Points: Single points

Touch interface: USB/RS232

Surface hardness: ≧3H

Light transmittance: ≧78% (industry standard)

Touch linear: ≦1.5%

Response speed: ≦15ms

Touch medium: pens, fingers, gloved hands, any non-sharp objects.

Touch life: Stroke: ≧ 100,000 times.
Pen clicks: ≧1 million times. (industrial standard)

Working environment: -20°C~ 70°C, 10%-90% RH no condensation

Storage environment: -30°C~ 80°C, 10%-90% RH no condensation




LCD Display, All-In-One Machine, POS Ordering Machine, Ordering Machine, Cash Register, Industrial Display, Industrial Flat All-In-One Machine, Self-Service Terminal, Vehicle Central Control/Navigation, Handheld/Portable Equipment, Etc.


Industry Application


Medical, Financial, Education, Transportation, Self-Service Terminals, Retail Catering And Hotel Services, Security Home, Entertainment, Power Communication, Military / Aerospace, Commercial (Enterprises, Government Agencies, Public Places, Exhibition And Display, Etc.) And Other Fields.


Four-wire resistance screen advantages / selling points


● Good linearity/accuracy: within 1.5% of linearity, accurate touch, high sensitivity, high response speed, stable, no drift.

● Stable performance: Industrial quality. Super anti-interference, not by external electric field, magnetic field, sound, light and other interference.

● Adapt to harsh environment: waterproof, dustproof, light and oil proof; It can work in harsh conditions Work steadily

● Super long life: touch times more than 1 million times.

● High-end materials: ITO film, glass, etc., are industrial grade, and the original factory A grade, do not use A- or other grades.

Good compatibility: compatible with USB and serial port; Excellent system compatibility, basic support for all operating systems, such as: Windows, Android, Linux, MS-DOS, Mac OS, etc.

● Perfect matching: you can match Taiwan EETI/ domestic control card/controller and wire, but also can support LCD screen, board card and other materials, one-stop to solve customer needs.


Special Reminder


1. Due to the differences in the specifications and structural dimensions of the touch screen, in order to avoid buying the wrong products or problems such as inability to support them, please be sure to confirm the requirements with customer service personnel before placing orders.

2. The resistive touch screen with control card/control board can support Windows, Android, Linux, MS-DOS and other systems, please contact customer service staff to obtain the relevant drivers.

3. If necessary, please contact customer service staff to obtain the drawings, specifications and other information.


Shopping Tips


1. Protecting film will be attached on both sides of the touch screen. Please do not tear off the protective film before you are sure to use it, as it may cause scratches, dirt and foreign bodies on the surface of the touch screen.
So once the protective film of the touch screen is torn off or the appearance is damaged, we cannot return the product. Please kindly understand.

2. The touch screen is fragile, please handle with care.




Q:How long is the warranty period?

Re:Usually 1 year without damaged by people actions.It depends on different products.

Q: Is customization available?


Re: Yes, we have strong R&D team for ele, mechanical, customization is welcomed.
Q: How can I get the samples?
Re:: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
Q: How long can I expect to get the sample?
Re::Contact with drawing: 2-3 days Sample time: 10-15 business days
Q:Will you offer free sample?
Re:: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
Q: Are you manufactory or trade company?

Re:We are professional manufactory, which specializes in TN, HTN, FSTN, STN, VA monochrome LCD, LED backlights, LCD modules more than 8 years in Shenzhen, China ! Our advanced full set equipments make sure good quality and competitive price!

Q: Can you design the lcd in acccordance with our demand?
Re:Sure.We will give you the best tooling charge.
Q:How to place orders ?
Re:If you confirm samples ok, Please send us your purchase order by Email or Fax, then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4)Forwarder's contact details if you have any in China.


Product show

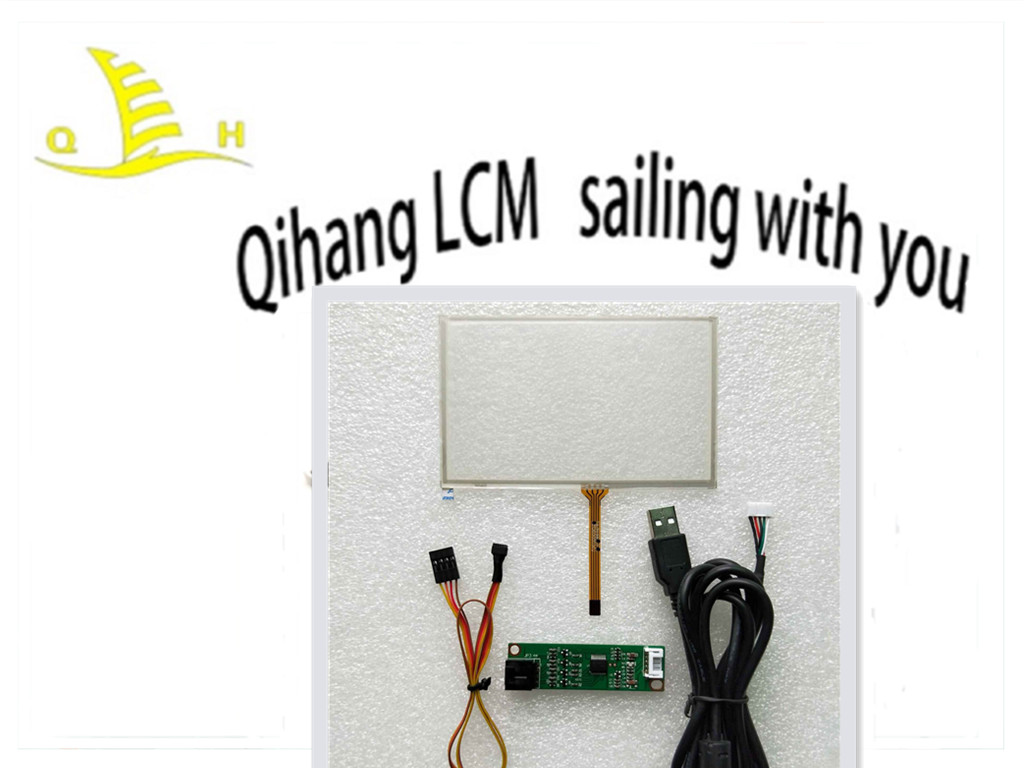

5.0 Inch RTP Resistive Touch Panel 4 Wire 15:9 For 800x480 TFT
