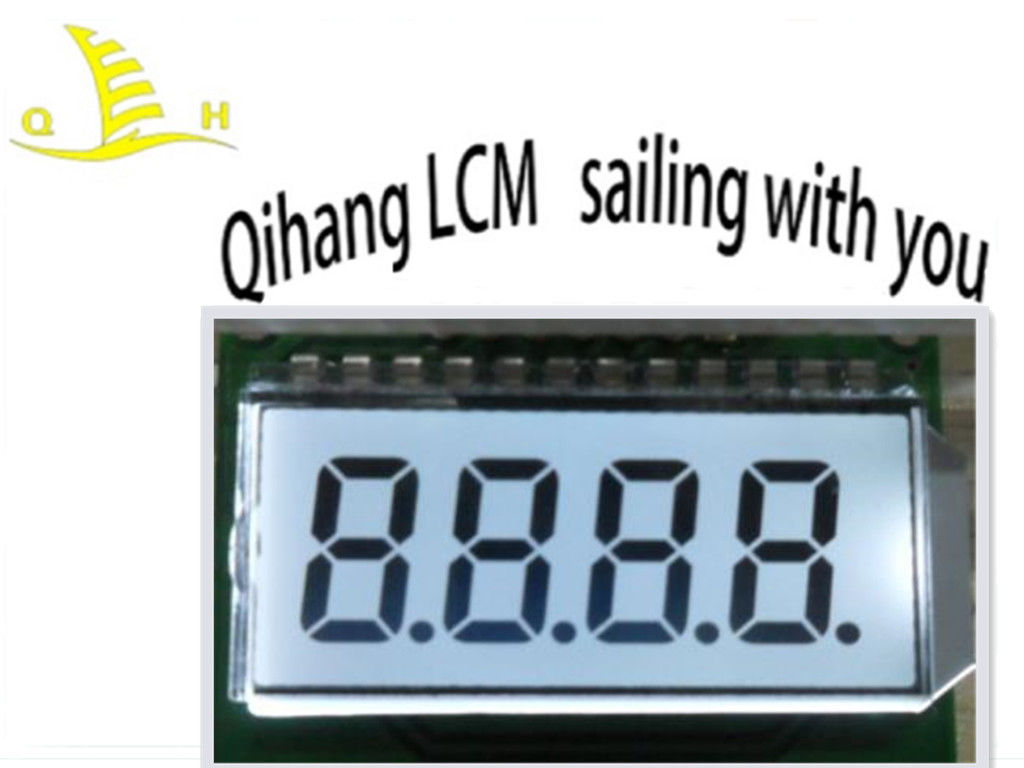

Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module

Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module

  • High Light

    7 Segment Lcd Display


    TN 7 Segment Lcd Display


    2.8V 7 Segment Lcd Display

  • Type
    Segment 7 LCD Board
  • Operating Voltage
    5.0V / 3.3V / 3.0V / 2.8V
  • Material
    TN LCD
  • Backlight
    With LED Backlight
  • Operating Temp
    -10℃ To +60℃
  • Storage Temp
    -20℃ To +70℃
  • Custom
  • Viewing Direction
    12:00 9:00 6:00 3:00 H
  • Name
    Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module
  • Warranty
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 pcs
  • Price
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module

Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module


Product Details


Name Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module
Place of Origin Shenzhen, Guangdong province, CN
Operating Voltage 5.0V / 3.3V / 3.0V / 2.8V
Driving Method Static
Viewing Angle 12:00 9:00 6:00 3:00 O'clock
LCD Mode TN LCD Board
Display Mode Transmissive TN
Connector Metal PIN, Zebra, Heat seal, Flat cable(FPC)
Operating Temperature -10℃~+60℃
Storage Temperature -20℃~+70℃
OEM/ODM Accecpted
System Design Lcd module related system software and hardware design accepted
Warranty 12 months free, payed warranty lifttime
PCB Without PCB
LCD Module Type Meter Module
Sample Lead Time 1 - 7 working days
Customize Lead Time 15 - 30 working days
Packaging One module in a foam board, all in small carton foam protecting, small carton in big carton
Cetification ISO, SGS




Customize 7 Segment LED Backlight TN STN FSTN LCD Display Module


Qihang company owns successful experience of 150+ big projects,

Qihang LCM provides instant delivery for standard products from stock,

7-15 days for new samples, 7-10 days for new FPC,

15 days for new Backlight,18 days for new Capactive touch panels,

Lead time for mass production of standard products could be as fast as 15 days,

Lead time for special products is as fast as 3 weeks.


What can we custom?


Display type: TN / HTN / STN / FSTN / FFSTN / DFSTN / VA

LCD structure: LCD Glass With / Without backlight

Banding type: COB, COG

Polarizer: Transmissive, Transflective, Reflective, Anti- Glare, Anti-UV

Background: Gray, Yellow-Green, Blue, Black

Operating temperature: -30 ℃ ~+85 ℃, Customization

Connector/Connection: Metal PIN, Zebra, Heat seal, Flat cable(FPC)


Packing & Delivery


Packing 1, For glass lcd panel we use poly foam, pearl cotton or customized plastic inner pad.
2, For lcd modules we use foam inner pad and single blister bag outer.
3, For outer packaging we use high-grade standard export carton.
4. Packing pieces is according to the goods size and shape.
5, We provide customized package service with low price.
1, We accept T/T, Western Union, Paypal, Bank Transfer, Cash, Money Gram, Escrow, etc.
2, Sample Order: 100% before drawing;
Mass Order: 30% deposit before production, 70% balance and freight before ship
3, Customers need to pay your side fee, customs tax and extra fees if you are in remote areas
4, We can declare your goods at low value to help you avoid taxes
1, Air cargo: 3-10 days
Sea cargo: 10-35 days
International air express: Fedex / DHL (recommend) / UPS / TNT ( 3 - 5days)
EMS / China Post / HongKong Post(10-20days)
2, We'll ship the goods within 2 days after received your payment
3, We'll send you the tracking number the next day after the goods are shipped
4, After make shipment, we'll also follow your goods, if you not receive box on time, please contact us immediately, we'll assist to get the box smoothly



Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.


Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.

Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.


Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.


Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low, STN was high.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.


Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.


Product Show
