Negative COB Banging 126 characters 128x64 Dots Alphanumeric Graphic LCD Display Module

Negative COB Banging 126 characters 128x64 Dots Alphanumeric Graphic LCD Display Module

  • High Light

    128x64 Dots Graphic LCD Module


    126 Characters Graphic LCD Module


    COB Banging Graphic LCD Display

  • Resolution
    128x64 Dots
  • LCD Module
    STN (Blue Film)
  • Display Mode
    Transmissive LCD Module
  • Viewing Angle
    6 O'clock / 6 Hour
  • IC
    ST7920 / Compatible IC
  • LCD Display
    Negative / Positive Display
  • Operating Temp
    -20℃ ~ +70℃
  • Storage Temp
    -30℃ ~ +80℃
  • Dimension
    93.0*70.0*12.5 Mm
  • V.A.
    71.9*39.9 Mm
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 pcs
  • Price
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

Negative COB Banging 126 characters 128x64 Dots Alphanumeric Graphic LCD Display Module

128x64 Dots Alphanumeric Graphic LCD Display Module


Product Description


Display format: 128*64 dot matrix
Viewing angle: 6 O’clock
Operation Voltage Range: 5.0 V
Support 8-bit, 4-bit and serial bus MPU interface
64 x 16-bit display RAM (DDRAM)
Supports 16 words x 4 lines (Max)
LCD display range 16 words x 2 lines
64 x 256-bit Graphic Display RAM (GDRAM)
2M-bits Character Generation ROM (CGROM):
Support 8192 Chinese words (16x16 dot matrix)
16K-bit half-width Character Generation ROM(HCGROM):
Supports 126 characters (16x8 dot matrix)
32-common x 64-segment (2 lines of character) LCD drivers
Automatic power on reset (POR)
External reset pin (XRESET)
With the extension segment drivers, the display area can up to 16x2 lines
Low power consumption design
Normal mode (450uA Typ VDD=5V)
Standby mode (30uA Max VDD=5V)
Graphic and character mixed display mode
Multiple instructions:
Display Clear
Return Home
Display ON/OFF
Cursor ON/OFF
Display Character Blink
Cursor Shift
Display Shift
Vertical Line Scroll
Reverse Display (by line)
Standby Mode
LCD driver IC
LCD controler: ST7920
Name 128x64 Dots Alphanumeric Graphic LCD Display Module
Product Name GraphicLCD Module Display
Model number JXL - 12864 F04-0A
Resolution 128*64 dots
Operating voltage 5V
Driving method according to your request
Viewing angle 6:00 O'clock
LCD mode STN lcd panel
Display mode Tansmissive glass
Conecting mode Metal pin or rubber or other
STN film Blue
DOTS 128*64 dots
Operating Temp: -20℃ to + 70℃
Storage Temp: -30℃ to + 80℃
Package COB Banging
IC ST7920 / compatible IC
System design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
Backlight LED (White) backlight
LCD Module type Digital display Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO, SGS




Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.


We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.

Negative COB Banging 126 characters 128x64 Dots Alphanumeric Graphic LCD Display Module 0

Product Application:


Embroidery machine, injection molding machine, human-machine interface, electrical meter, programmable controller, Frequency converter and drive, FANUMERICAL control equipment, equipment maintenance tools, fluid control, industrial safety, intelligent community security and other types, Servo step-motion control, field detection instrument, display control and adjustment instrument, industrial computer, embedded system, data acquisition, Analyzer, pressure gauge, temperature meter, flowmeter, detector, liquid level meter, Flow meter, reflector, color analyzer, Alarm, Earth sensor, temperature controller, color selector, low-voltage electrical appliances, data transmission telemetry and remote control.




Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.


Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low,STN was high.


Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.


Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.


Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.


Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.


Product Show

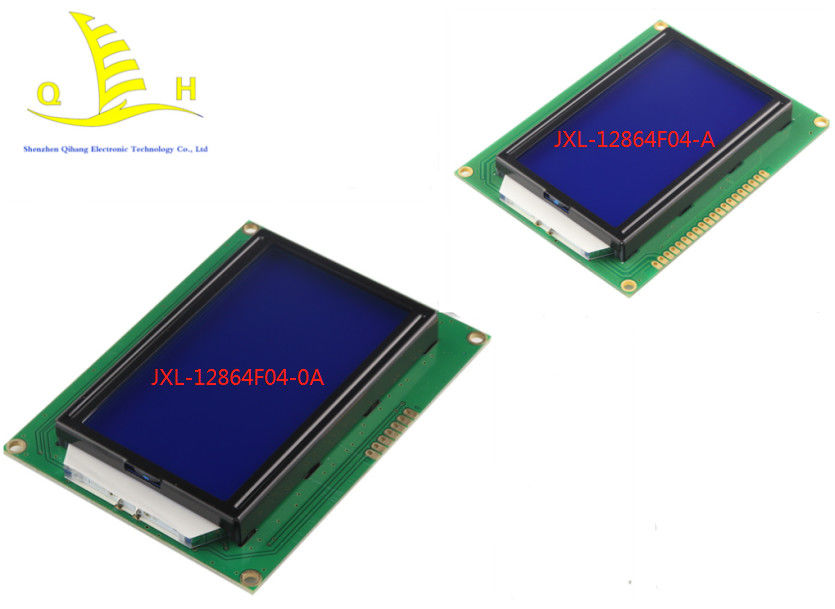

Negative COB Banging 126 characters 128x64 Dots Alphanumeric Graphic LCD Display Module 1
