Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module

Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module

Products - Character LCD Display Module
  • High Light

    FSTN Dot Matrix LCD Display

    ,

    I2C Dot Matrix LCD Display

    ,

    16x2 Character Lcd Module

  • Type
    1602 Lcd Module
  • Display Mode
    Blue Film/ Yellow-Green Film / Grey Film
  • Outside Dimensions
    80.0X36.0X9.7 Mm
  • View Area
    66.0X16.0 Mm
  • IC
    KS0066 & KS0065
  • Connector Type
    Metal PIN
  • Display Type
    Character Lcd Module
  • LCD Material
    FSTN LCD Glass
  • Name
    16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module
  • MOQ
    1piece
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-1602COG-1
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

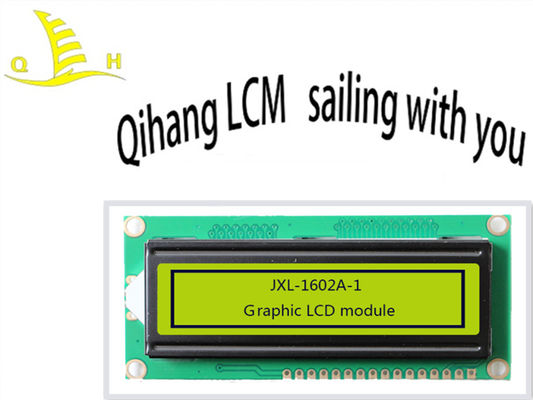

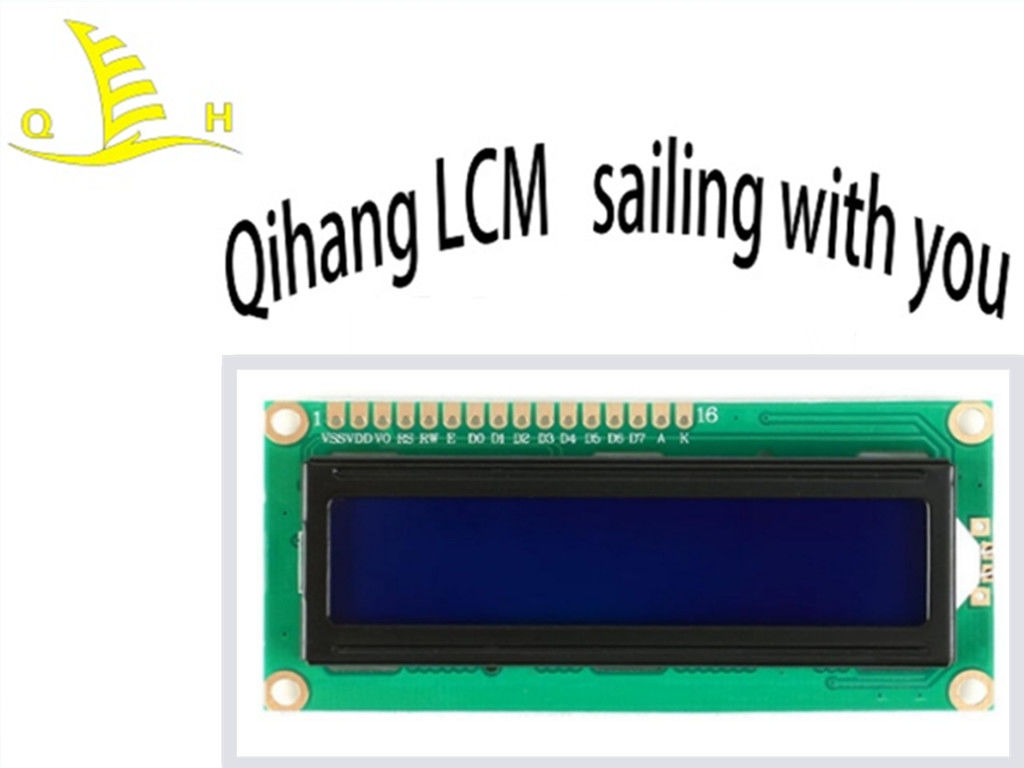

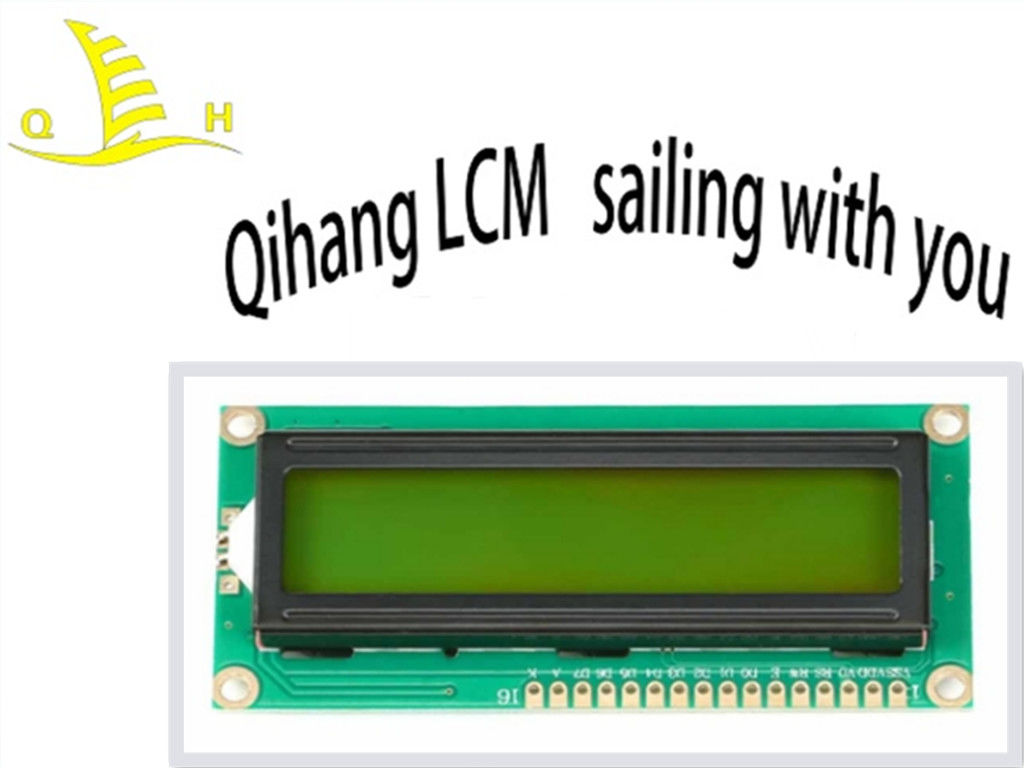

Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module

  • Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module
  • Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module
  • Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module
  • Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module
Get Price Contact Now

16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module



Product Details



1602A Blue/ Yellow-Green / Grey


Parameter


Logic working voltage (Vdd): +4.8~+5.2V
LCD drive voltage (Vdd-Vo): +3.0~ +5.0V
Storage temperature (Tsto): -30~+ 80C (wide temperature)
Working temperature (Ta): -20~+70C (wide temperature)
Operating current (except backlight): 1.7mA (max)
Working current (backlight): 24.0mA (max)



Name 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module

Resolution

16*2 Character

Model No.

JXL-1602COG-1

Outline Dimension

49.7X25.3X2.0mm

Viewing Area

45.7X14.3mm

Dot Size

0.41X0.55mm

Character Size

2.21X4.68mm

Display Mode

FSTN Black and White, STN Yellow Green, Negative Blue

Driver IC

ST7032 or EQV.

Interface

I2C Serial

Connector Type

Metal PIN

Backlight

None

Weight

10.8g


Description



This is a fancy upgrade to standard 16x2 COG LCDs, having Black and White, STN Yellow Green, Negative Blue, this LCD has black characters on a full color RGB-backlight background! That means you can change the background color to anything you want - red, green, blue, pink, white, purple yellow, teal, salmon, chartreuse, or just leave it off for a neutral background. This LCD is the most daylight readable character LCD we have and is very beautiful and easy to read no matter what color / brighness you have for the backlight.



Packing & Delivery



Packing

1, For glass lcd panel we use poly foam, pearl cotton or customized plastic inner pad.

2, For lcd modules we use foam inner pad and single blister bag outer.

3, For outer packaging we use high-grade standard export carton.

4. Packing pieces is according to the goods size and shape.

5, We provide customized package service with low price.

Payment

1, We accept T/T, Western Union, Paypal, Bank Transfer, Cash, Money Gram, Escrow, etc.
2, Sample Order: 100% before drawing
Official Order: 30% deposit before production, 70% balance and freight before ship
3, Customers need to pay your side fee, customs tax and extra fees if you are in remote areas
4, We can declare your goods at low value to help you avoid taxes

Shipping

1, Air cargo: 5-10 days
Sea cargo: 15-35 days
International air express: DHL(recommend)/Fedex/UPS/TNT(3-5days)
EMS/China Post/HongKong Post(10-20days)
2, We'll ship the goods within 2 days after received your payment
3, We'll send you the tracking number the next day after the goods are shipped
4, After make shipment, we'll also follow your goods, if you not receive box on time, please contact us immediately, we'll assist to get the box smoothly.



FAQ



Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.



Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.



Product drawing

Liquid Crystal 16x2 Character LCD I2C FSTN Dot Matrix Character LCD Display Module 0
