Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-E1195AM2-FPC1-RD-02
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 20-25 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 100,000 Per Month
Name: |
1.19 Inch AMOLED 390 X390 Dots Round OLED Display Module |
Diagonal Size: |
1.19 Inch |
OLED Outline Dimension (mm): |
33.99*33.62*0.78(mm) |
Viewing Area: |
30.42*30.42(mm) |
Active Area: |
32.72*32.72(mm) |
Interface: |
MIPI / SPI |
Brightness: |
350 Nits |
Display Color: |
Colourful |
Touch Panel: |
On-cell CTP |
Drive IC: |
RM67162 |
Name: |
1.19 Inch AMOLED 390 X390 Dots Round OLED Display Module |
Diagonal Size: |
1.19 Inch |
OLED Outline Dimension (mm): |
33.99*33.62*0.78(mm) |
Viewing Area: |
30.42*30.42(mm) |
Active Area: |
32.72*32.72(mm) |
Interface: |
MIPI / SPI |
Brightness: |
350 Nits |
Display Color: |
Colourful |
Touch Panel: |
On-cell CTP |
Drive IC: |
RM67162 |

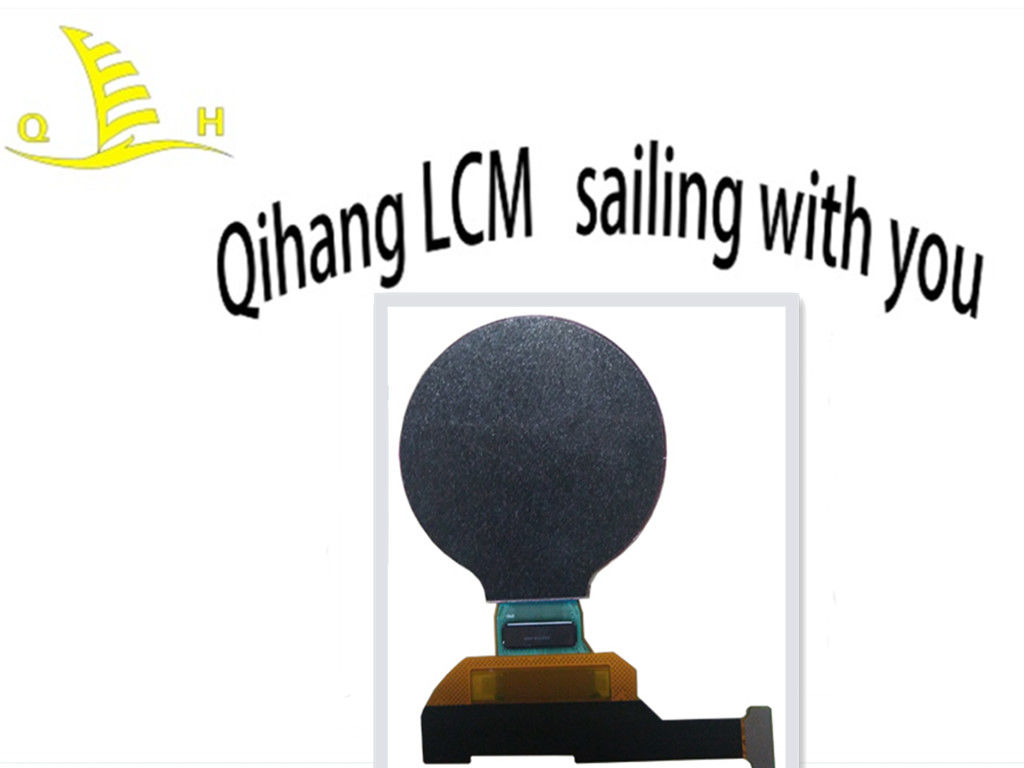

1.19 Inch AMOLED 390 x390 Dots Round OLED Display Module
Quick Details
| 1.19 Inch AMOLED 390 x390 Dots Round OLED Display Module | ||
| Feature | Specifications | |
| Display Specs | Size | 1.19inch |
| Resolution (H*V) | 390(RGB)× 390 | |
| Technology Type | AMOLED | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Surface Treatment | - | |
| Viewing Direction | All | |
| Gray Scale Inversion Direction | - | |
| Mechanical Characteristics | OutlineDimensions (W x H x T) (mm) | 33.99*33.62*0.78 |
| Active Area(mm) | 30.42*30.42 | |
| With /Without Touch screen | on-cell CTP | |
| Backlight Type | N/ A | |
| Weight (g) | TBD | |
| Electrical Characteristics | Interface | MIPI |
| Number of color | 16.7M | |
| Driver IC | RM67162 | |
Quality to be ensure
All the panels are 100% original and brand new, no fake panels exists, so from Shenzhen qihang electronic technology company you can enjoy the real panels directly from original factory;
Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;
Packaging and delivery
Delivery Details : 3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register
Packing Details : Packing with box, it also can package as your request
FAQ
Q:The LCD screen can be exported directly? what certification could provide?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.
Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.
Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.
