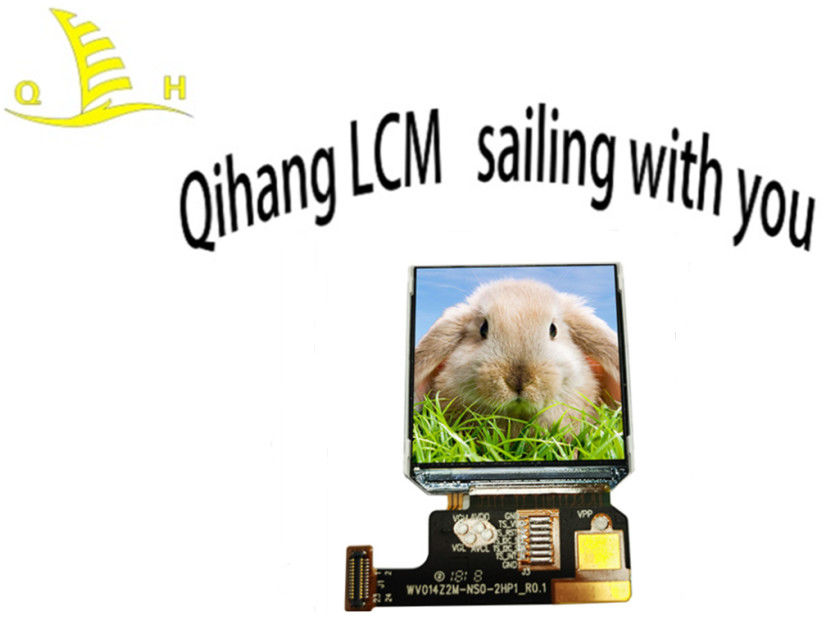

IC ST7796H 1.4 Inch TFT LCD Module 320×320 Pixel 27.34×30.33mm

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: WV014Z2M-NS0
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Type: TFT LCD Modue Diagonal Size: 1.4" / 1.4 Inch
Display Resolution: 320*320 Pixel Active Area: 24.96(H)×24.96(V) Mm
Pixel Pitch: 0.078×0.078 Mm Display Color: 262 K
Dimension: 29.04(H)×30.83(V)×1.35(T) Mm Weight: 2.9 G
Drive IC: ST7796H Display Mode: Transmissive
High Light:

IC ST7796H TFT LCD Module


1.4 Inch TFT LCD Module


320×320 Pixel Tft Display Module

1.4 inch 320*320 ADS TFT-LCD Module IC ST7796H 27.34×30.33 mm


1. Over View


WV014Z2M-NS0 is a color active matrix TFT-LCD Model using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 1.4 inch diagonally measured active area with 320 horizontal by 320 vertical pixel array. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 262K colors.

2. Features

  1. 0.36t Glass

  2. Thin and light weight

  3. Low Power consumption, High trans, High CR, Wide view angle

  4. Module Design

  5. RoHS Compliant

3. Mechanical specification




Screen Size




Display Resolution



Active Area



Pixel Pitch



Display color




Outline Dimension








4. Application


Smart Watch


5. Service


5-1. Free repair within one year after the shipment of products from us.
5-2. Replacement within 30 days after the shipment of products from us due to products' problems.
5-3. We can print your logo and stick your model No. on the cameras.
5-4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5-5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
5-6. All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
5-7. Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.
5-8. Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.

Shenzhen qihang electronic technology company will support original factory technology service before and after sale for all your project.


6. Packing & Delivery


1). Payment Terms: T / T, Paypal
2). Shipping: Prompt delivery by UPS, DHL, TNT, FedEx, EMS, or by air.
3). Delivery time: 3-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 3 to 45 days. The delivery fee is up to the weight and volume of the products.

IC ST7796H 1.4 Inch TFT LCD Module 320×320 Pixel 27.34×30.33mm 0

7. Product drawing

IC ST7796H 1.4 Inch TFT LCD Module 320×320 Pixel 27.34×30.33mm 1

8. FAQ


Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.


Q.: What is your business type?
A: We design, produce and export our products.


Q: What are the payment terms?
A:Our payment terms are T/T (telecom transfer) 30% in advance and T/T 70% before shipment.


Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.

Q: Can we visit your factory?
A: Welcome!

Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is in Europe, North America and Asia.

Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and the period of year.

Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs / lot, however we accept less quantities for the trial orders.
