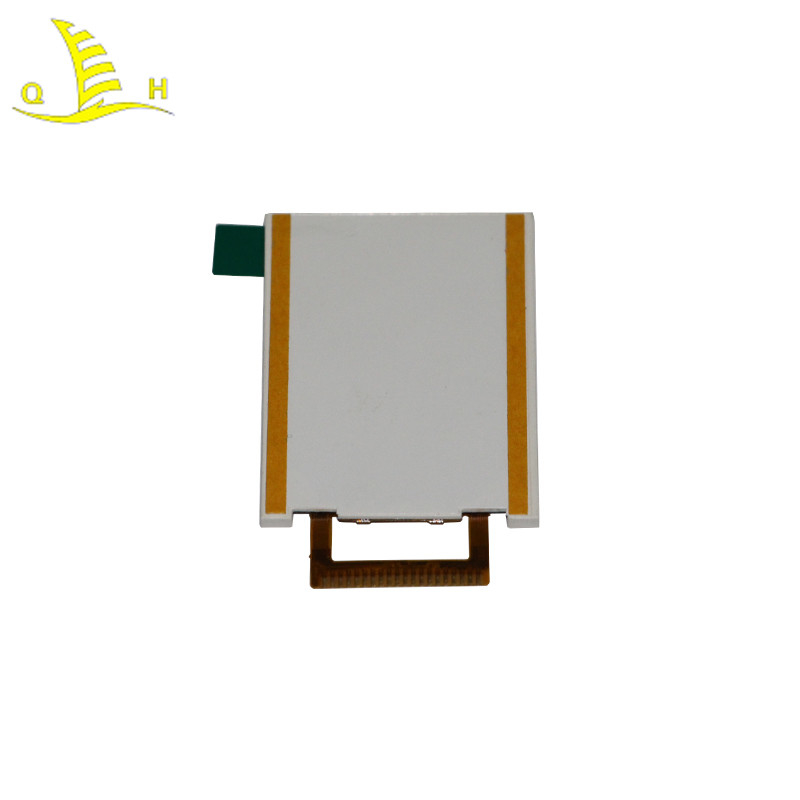

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

  • High Light

    128x160 TFT LCD Screen Module

    ,

    TN TFT LCD Screen Module

    ,

    1.77 Inch Lcd Monitor Module

  • Display Size
    1.77 Inch TFT-LCD
  • Resolution
    128*160
  • Dimensions
    34.0 Mm*43.7 Mm*2.25 Mm
  • Active Area
    28.03 Mm×35.04 Mm
  • Pixel Arrangement
    RGB Vertical Stripes
  • Drive IC
    GC9102
  • Viewing Angle
    6 O'clock / 12 O'clock
  • Material
    TN
  • Name
    TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module
  • Warranty
    12months
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-1.77 TFT-M018C
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module



Features



Main LCD 1.77 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) for mobile-phone or handy electrical equipments.

1.1 Construction: 1.77 inch a-Si color TFT-LCD with White LED Backlight.

1.2 Main LCD :

1.2.1 Amorphous-TFT1.77 inch display, transmissive, Normally white type, 12 o'clock.

1.2.2 128(RGB) X 160 dots Matrix

1.2.3 LCD IC controller is GC9102.



Quick Details



Name TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module

Display Size

1.77 inch TFT LCD

Display Mode

Normally White, Transmissive LCD

Viewing Direction

6 o'clock / 12 o'clock

Material

TFT

Touch screen type

Resistive

Operating Temp:

-20℃-70℃

Storage Temp:

-30℃-80℃

Material

TN

Input Signals

RGB



Technical Service



If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.



Certification



Qihang has a complete quality management system and passed the ISO9001:2015 quality system certification.The products conform to SGS,BV, RoHS, Reach and other certifications.



Sample Policy



Contact us for information regarding our sample policy



Product Drawing

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module 0

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module 1

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module 2

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module 3

TN Material GC9102 IC 1.77 Inch 128160 TFT LCD Screen Module 4
