Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-12864-6
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 15-18 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 100000 Per Month
Display Type: |
Graphic Lcd Display |
LCD Module: |
STN Lcd Panel |
Display Mode: |
Positive |
Polarizer: |
Transflective |
Dots Number: |
128x64 Dots |
Dimension: |
78.0*70.0*14.0(mm) |
Dot Pitch (W*H): |
62.0*44.0(mm) |
Drive Method: |
1/64Duty, 1/9Bias |
LCD Operating Voltage: |
5V |
Viewing Direction: |
6 O'clock |
Storage Temperature: |
-30℃-80℃ |
Operating Temperature: |
-20℃-70℃ |
Name: |
78.0*70.0mm STN Panel Dot Matrix Graphic Transflective COB LCD Display Module |
Display Type: |
Graphic Lcd Display |
LCD Module: |
STN Lcd Panel |
Display Mode: |
Positive |
Polarizer: |
Transflective |
Dots Number: |
128x64 Dots |
Dimension: |
78.0*70.0*14.0(mm) |
Dot Pitch (W*H): |
62.0*44.0(mm) |
Drive Method: |
1/64Duty, 1/9Bias |
LCD Operating Voltage: |
5V |
Viewing Direction: |
6 O'clock |
Storage Temperature: |
-30℃-80℃ |
Operating Temperature: |
-20℃-70℃ |
Name: |
78.0*70.0mm STN Panel Dot Matrix Graphic Transflective COB LCD Display Module |

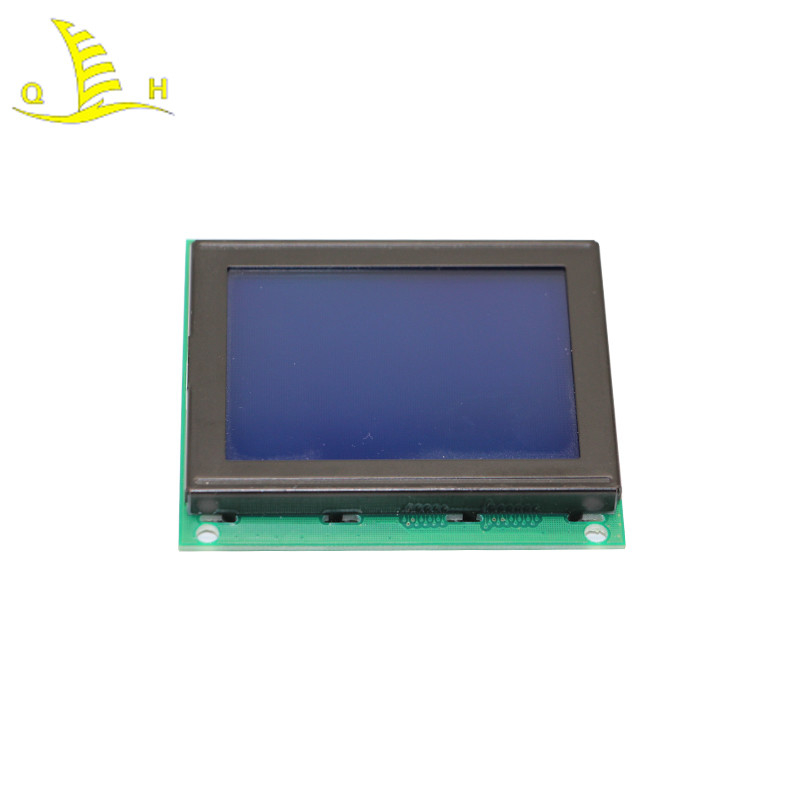

78.0x70.0mm STN panel Dot Matrix Graphic Transflective COB Lcd Display Module
Product Details
| Name | 78.0x70.0mm STN panel Dot Matrix Graphic Transflective COB Lcd Display Module |
|
Place of Origin: |
Guangdong, China |
|
Display Content |
128*64 DOTS |
|
Operating Voltage |
5V |
|
Driving Method |
according to your request |
|
Viewing Angle |
6 Hour |
|
Display |
Positive |
|
Polarizer |
Transflective |
|
View Area |
62.0 (H) x 44.0 (V) mm |
|
Outside Dimensions |
78.0 (H)x 70.0 (V)x 10.0 (D)mm |
|
Voltage Driving |
Dynamic or static |
|
Connector |
30 Pin or according to your request |
|
Operating Temperature |
-20℃-70℃ |
|
Storage Temperature |
-30℃-80℃ |
|
Package |
COB |
|
Drive Method |
1/64Duty, 1/9 Bias |
|
System Design |
Lcd module related system software and hardware design accepted |
|
Warranty |
12 moths free, payed warranty lifttime |
|
Backlight |
White (side) |
|
LCD Module Type |
Time Module |
|
Sample Lead Time |
3-7 working days |
|
Customize Lead Time |
15-30 working days |
|
Packaging |
One module in a bag, bags in small carton foam protecting, small carton in big carton |
|
Cetification |
ISO,SGS |
Product Application
The graphic LCM can be widely used in applications where the display information content is rich and the display information is large.
For example, in the fields of information home appliances, communication equipment, industrial control, intelligent instrument and meter, the use of modules can be divided into two steps: display interface generation and real-time display.
Shipping Warranty
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.
Technical Service
If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.
Product Show
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized, but lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Payment Terms?
A: Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX / TNT, or ship the goods to your forwarder.
Q: Products are in stock? How long can you deliver?
A: Our product is mainly customized.Drawing finished within 3 days; samples finished within 7 days. Large batch delivery takes 4-5 weeks.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
