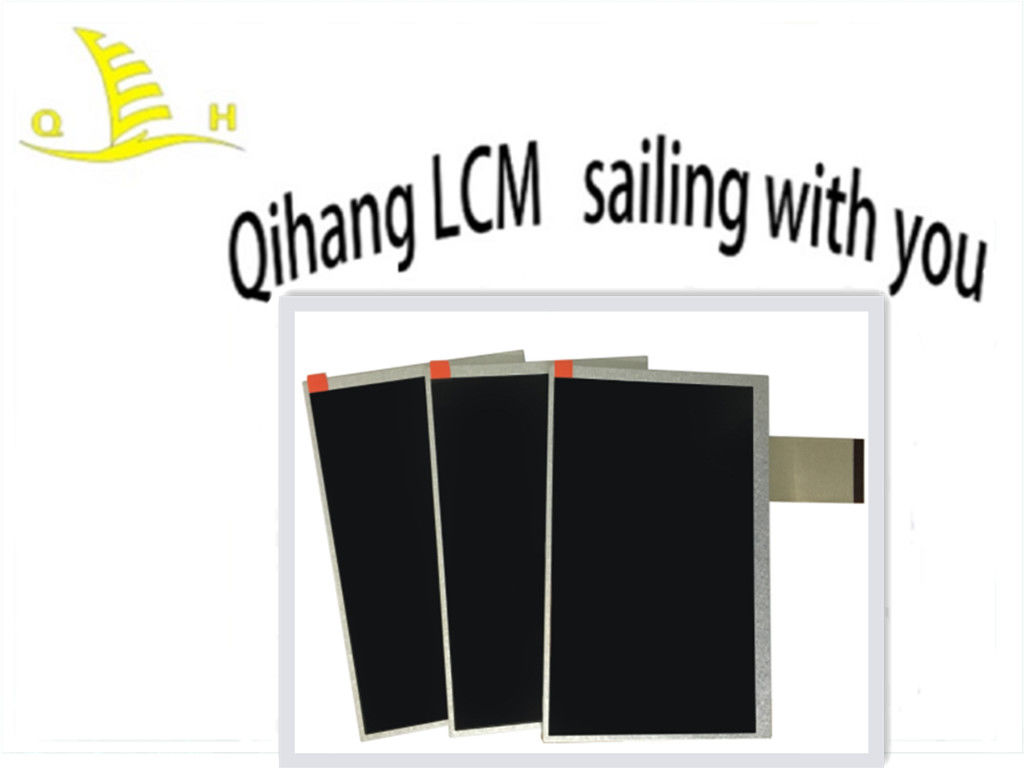

7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS

7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS

  • 7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS
  • 7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS
  • 7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS
7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-7.0TFT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Contact Now
Detailed Product Description
Display Size: 7Inch Display Mode: Transmissive LCD, Normally White
Outside Dimensions: 164.9 Mm*100.0mm*3.5mm Active Area: 154.08mm×85.92mm
Number Of Pixels: 800*480 Dots Brightness: 350cd/m2
Interface: IPS Shape: Rectangle
High Light:

800x480 TFT LCD Screen Module


7Inch TFT LCD Screen Module


350cd/M2 TFT LCD Screen Module

7Inch 800*480 tft lcd module LCD panel lcd display 350cd/m2 IPS


Quick Details


Display Size 7.0" TFT
Display Mode
White, Transmissive / Positive LCD
Viewing Direction
Volte 3.3 -5.0 V
Backlight 15 Chip-White LED Light
Operating Temp: -20 ℃ - 70 ℃
Storage Temp:  -30 ℃ - 80 ℃

Input Signals

R.G.B. Vertical Stripe

Number of Pin

50 Pins


General Description


The JXL-7.0TFT model is a Color TFT LCD supplied by Shenzhen Qihang Electronic Industrial Co., Ltd. This main Module has a 7.0 inch diagonally measured active display area with 800(H)*3(RGB)X480(V) resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes. LCD color is determined with 16.7M colors signal for each pixel.
The JXL-7.0TFT has been designed to apply the interface method that enables low power, high speed, and high contrast.
The JXL-7.0TFT is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

Top 10 Industries of the company


Communications Products, Vehicle Instrumentation, Electrical Industry, Consumer Electronics, Home Appliances Industry, Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry




Qihang company owns successful experience of 150+ big projects,

Qihang LCM provides instant delivery for standard products from stock,

7-15 days for new samples, 7-10 days for new FPC,

15 days for new Backlight,18 days for new Capactive touch panels,

Lead time for mass production of standard products could be as fast as 15 days,

Lead time for special products is as fast as 3 weeks.



Q: Are you manufactory or trade company?

Re:We are professional manufactory, which specializes in TN, HTN, FSTN, STN, VA monochrome LCD, LED backlights, LCD modules more than 8 years in Shenzhen, China ! Our advanced full set equipments make sure good quality and competitive price!

Q:Will you offer free sample?
Re:: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.

Q: How can I get the samples?
Re:: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect

Q: How long can I expect to get the sample?
Re::Contact with drawing: 2-3 days Sample time: 10-15 business days

Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and
we sincerely do business and make friends with them,no matter where they come from.

Block Diagram


7Inch 800*480 TTFT LCD Screen Module Display 350cd/M2 IPS 0
