|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Tray , Standard carton|
|Delivery Time:||10-15 Days|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal|
|Supply Ability:||300000 Per Month|
|Material:||STN (Y-G)||Resolution:||16*2 Dots|
|Dimension:||80.0 (L)*36.0 (W)*9.0 (H)mm||V.A.:||64.5 （L）*13.8 （W）mm|
|IC:||KS0066||LCD Operating Voltage:||5.0v (3V-5V.>2.8v Is Ok)|
|Drive Mode:||1/6 DUTY ,1/5BIAS 4.5V||Viewing Direction:||6 O'clock|
1602 Character LCD Display Module,
KS0066 Character LCD Display Module,
KS0066 arduino character lcd

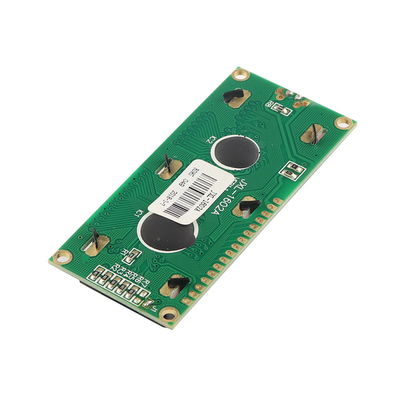

RGB Backlight KS0066 1602 Character LCD Display Module 6 o'clock
This is a fancy upgrade to standard 16x2 LCDs, instead of just having blue and white, or red and black, this LCD has black characters on a full color RGB-backlight background! That means you can change the background color to anything you want - red, green, blue, pink, white, purple yellow, teal, salmon, chartreuse, or just leave it off for a neutral background. This LCD is the most daylight readable character LCD we have and is very beautiful and easy to read no matter what color/brighness you have for the backlight.
We had these custom made to our specification so that you can use them in existing LCD projects and they'll still work - just that only the red LED will be used. The extra two pins (17 and 18) are for the green and blue LEDs. The LCD has resistors on board already so that you can drive it with 5V logic and the current draw will be ~20mA per LED. There's a single LED backlight for the entire display, the image above showing 3 colors at once is a composite!
Comes with a single 16x2 RGB backlight LCD, 10K necessary contrast potentiometer and strip of header. Our tutorials and diagrams will have you up and running in no time!
For more information, check out our detailed step-by-step tutorial for both Arduino & Circuit Python
Packaging & Delivery
1 - 2
3 - 100
To be negotiated
Top 10 Industries of the company:
Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry
Q1: How many years for warranty can you provide?
A1: Normally 1 year. Can be longer but price should be modified.
Q2: How long can I get reply?
A2: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends.
Q3: What shall we do if we find any item missing or defective after receiving the goods?
A3: Please contact us ASAP, we will check it and offer the best solution according to the situation.
Q4: Is it possible to customize the LCD modules?
A4: Yes you could let us know the concrete requirements then we will design and confirm with you.
Q5: Is it possible we appoint the delivery agent?
A5: Yes. Except the couriers we mentioned, we could use others as your requirement.
Q6:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.
