High-end custom 7-segment LCD module 5.0V VA Segment LCD Module

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-M-26
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Material: VA/ FSTN LCD Diaplay Screen Module Operating Temp:: -10℃-60℃
Storage Temp:: -20℃-70℃ Polarizer Mode: Transflective, Positive
Custom: High-end Custom Viewing Direction: 6 O'clock
LCD Operating Voltage: 5.0V (3V-5V.>2.8v Is Ok) Drive Mode: 1/8 Duty ,1/4 Bias

1/8 Duty Segment LCD Module


81.18*61.04mm Segment LCD Module


1/8 Duty seven segment lcd display

High-end custom 7-segment LCD module 5.0V VA Segment LCD Module

Product Details


Place of Origin

Shenzhen, Guangdong, China

Operating Voltage

5.0V (3V-5V.>2.8v Is Ok)

Driving Method

According to your request

Viewing Angle

6 O'clock

LCD Mode


Display Mode

Transflective / Positive /Glare

View Area

81.18 (L)*61.04 (W)mm

Outside Dimensions

90.15 (L)*90.03 (W)*7.85 (H)mm

Voltage Driving

Dynamic or static


Pin or Plug-and-jack type or FPC

Operating Temperature


Storage Temperature






System Design

Lcd module related system software and hardware design accepted


12 moths free, payed warranty lifttime


White LED

LCD Module Type

Meter Module

Sample Lead Time

3-7 working days

Customize Lead Time

15-30 working days


One module in a bag, bags in small carton foam protecting, small carton in big carton




Technical Service


If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.


Shipping Warranty


We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.




We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.
1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters
3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

Product Drawing

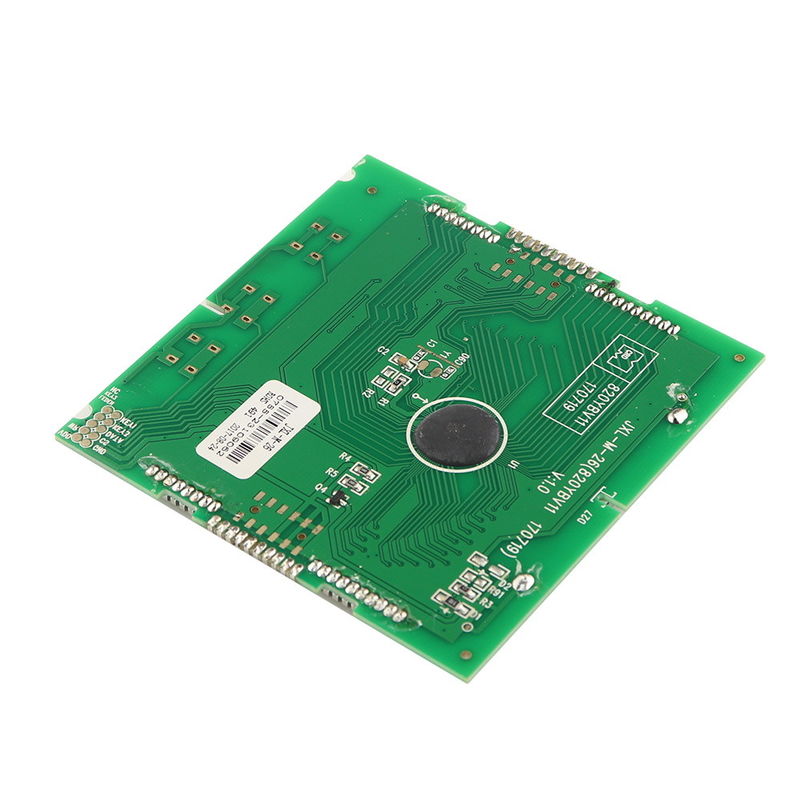

High-end custom 7-segment LCD module 5.0V VA Segment LCD Module 0

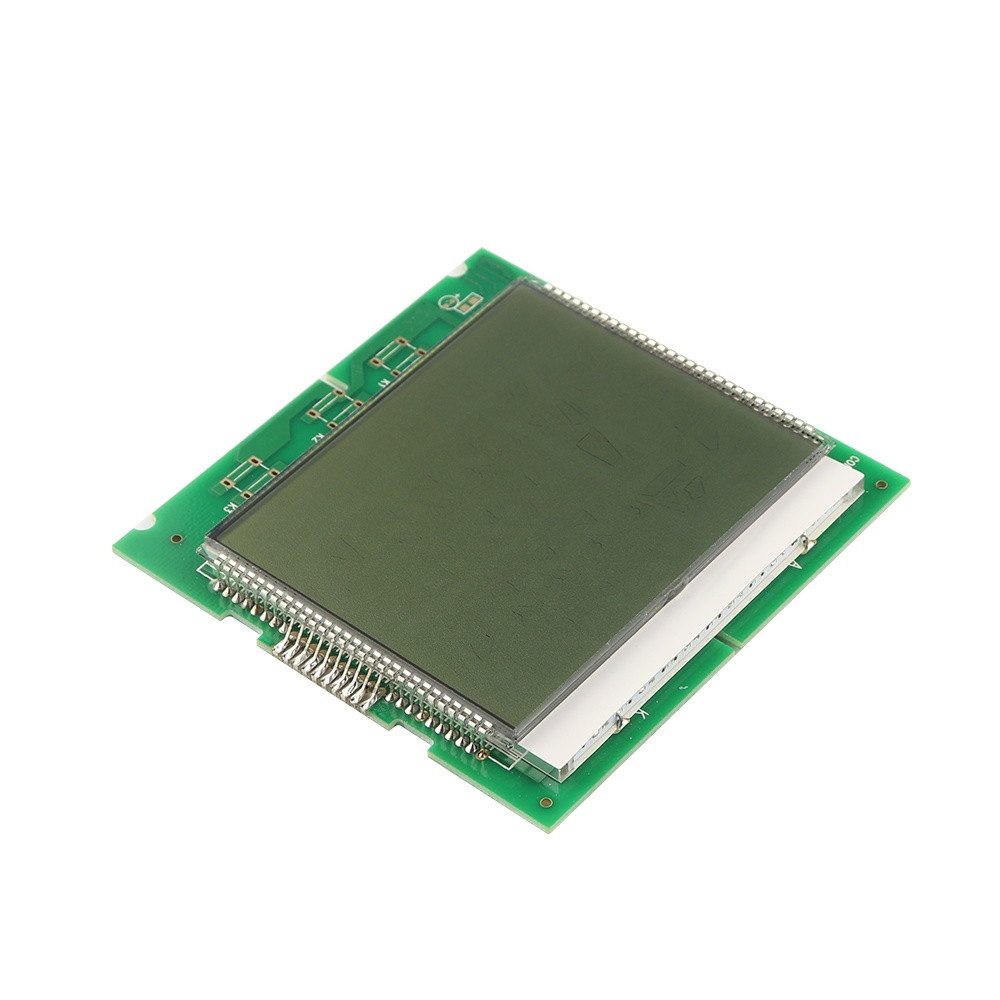

High-end custom 7-segment LCD module 5.0V VA Segment LCD Module 1
