Customize COB COG 7 Segment Size Monochrome LCD Screen Display Module

Customize COB COG 7 Segment Size Monochrome LCD Screen Display Module

  • High Light

    STN monochrome segment display

    ,

    COB COG monochrome segment display

    ,

    OEM 7 segment lcd display

  • Display Type
    Monochrome Segment Display
  • Backgroud
    Blue/gray/yellow
  • Connection Type
    COB COG
  • Glass Material
    TN/STN/FSTN
  • Dimension
    OEM
  • Produce Alibity
    10,000piece/day
  • Certification
    CE/ROHS
  • Original
    Shenzhen, China
  • MOQ
    1piece
  • Origin
    Shenzhen, China
  • Place of Origin
    CHINA
  • Brand Name
    QIHANG
  • Certification
    CE ROHS
  • Model Number
    JXL
  • Minimum Order Quantity
    1
  • Price
    USD0.1 - USD10
  • Packaging Details
    Blister packing within carton
  • Delivery Time
    5-10days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100,000 pieces/day

Customize COB COG 7 Segment Size Monochrome LCD Screen Display Module

COB COG 7 Segment Size Monochrome LCD Display Screen Module



7 segment display is an old school Opto-Electronic Display device mainly used to display alphabets and digits. As the name suggests, these displays include seven segments that switch ON & OFF to display the required digit or alphabet. The segments in this display are normally single LEDs or liquid crystals. These displays are extensively used in electronic meters, digital clocks, displays in home appliances, basic calculators, cars & different electronic devices that display numerical data. So let us discuss more about a 7-segment display in this article.



In this type, all LEDs share a common anode terminal while each cathode terminal is connected to a different segment. In order for a segment to light up, the corresponding cathode terminal will be grounded and the common anode terminal is provided with +5V source voltage. To interface a common anode type to a microcontroller then the Cathodes of each segment are connected through appropriate port pins of the microcontroller.



Name
 COB COG 7 Segment Size Monochrome LCD Screen Display Module
Glass thickness
0.4mm,0.55mm,0.7mm,1.1mm for option

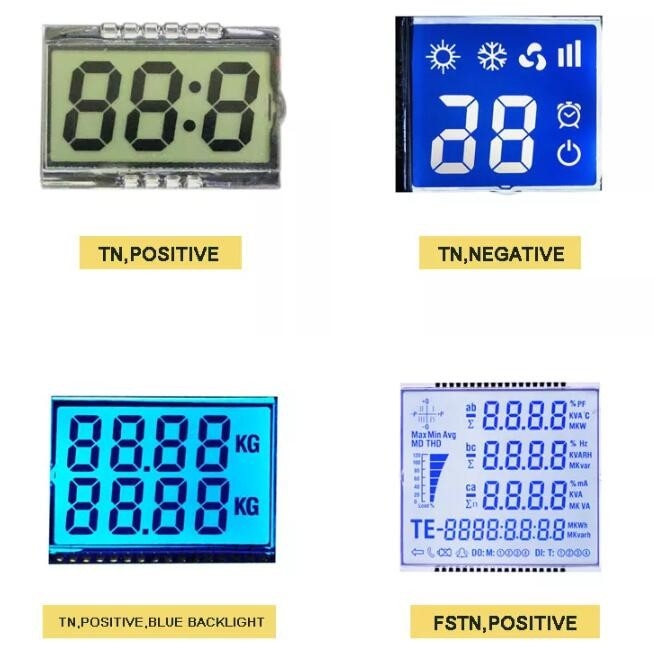

Display type
TN,HTN,STN,FSTN,VA for option
Display mode
positive,negative
Driving voltage
2.8v,3.0v,3.3v,5.0v
Viewing direction
6 o′clock,12 o′clock,9 o′clock
Polarizer type
reflective,transflective,transmissive
Operating temperature
-30~80 ℃ (max)
Storage temperature
-40~90 ℃ (max)
Connector
metal pin, rubber zebra,FPC
Backlight
LED Backlight





monochrome segment display products:
