Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-12864-2ZL
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: USD 5.1-6.2
Packaging Details: Tray , Standard carton
Delivery Time: 20-25 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 100000 Per Month
Name: |
Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module |
Polarizer Type: |
Transflective / Positive |
Dimension: |
113 (L) * 65 (W)* 14.0 (H)(mm) |
Viewing Area: |
70.6 (L)*38.6 (W)(mm) |
Material: |
STN LCD Display Module |
Drive Mode: |
1/64 DUTY ,1/9 BIAS |
Operating Temp:: |
-15℃-65℃ |
Storage Temp:: |
-20℃-70℃ |
Viewing Direction: |
6 O'clock |
MOQ: |
1piece |
Name: |
Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module |
Polarizer Type: |
Transflective / Positive |
Dimension: |
113 (L) * 65 (W)* 14.0 (H)(mm) |
Viewing Area: |
70.6 (L)*38.6 (W)(mm) |
Material: |
STN LCD Display Module |
Drive Mode: |
1/64 DUTY ,1/9 BIAS |
Operating Temp:: |
-15℃-65℃ |
Storage Temp:: |
-20℃-70℃ |
Viewing Direction: |
6 O'clock |
MOQ: |
1piece |

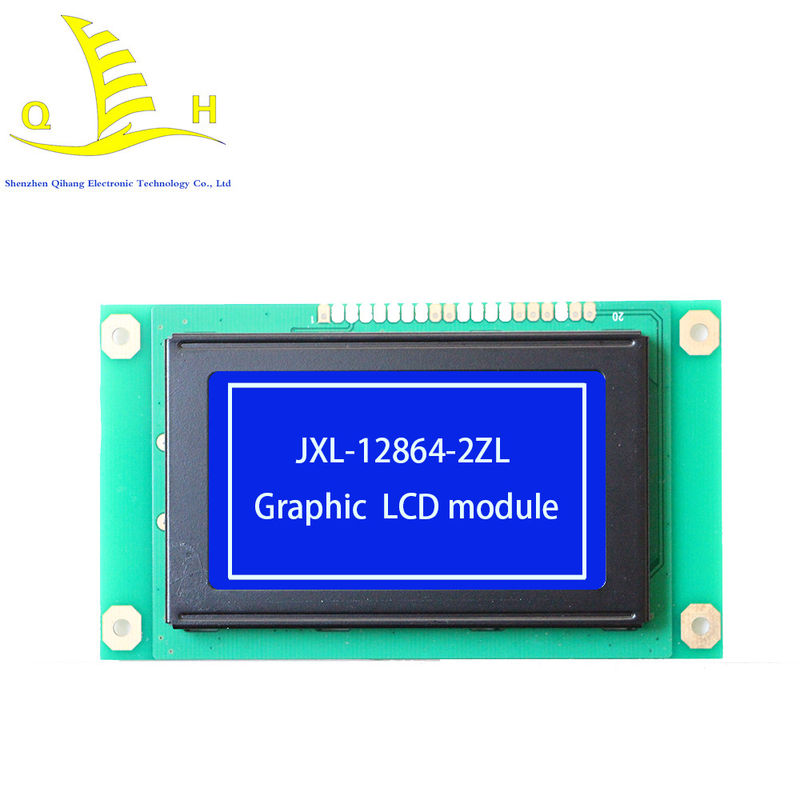

Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module
Product Specification
| Applicaion | Alll kinds of meters |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V /5.0V |
| Driving method | according to your request |
| Viewing angle | 6H |
| LCD mode | STN |
| Display mode | transflective / positve |
| Conecting mode | Metal pin or rubber or other |
| STN film | Blue film/ yellow film/ grey film etc. |
| Voltage driving | Dynamic or static |
| DOT*DOT (W*H) | 128*64 |
| Operating voltage | -15℃-65℃ |
| Storage voltage | -20℃-70℃ |
| Package | COB |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free |
| Backlight | LED (White) |
| LCD Module type | Metering Module |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| Cetification | ISO,SGS |
Lead Time
| Quantity(Pieces) | 1 - 2 | 3 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated |
We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.
1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters
3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.
1.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
2.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN, VA monochrome LCD, LED backlights, LCD modules more than 8 years in Shenzhen, China ! Our advanced full set equipments make sure good quality and competitive price!
3.Q: How long can I expect to get the sample?
A:Contact with drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax, then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4)Forwarder's contact details if you have any in China.
