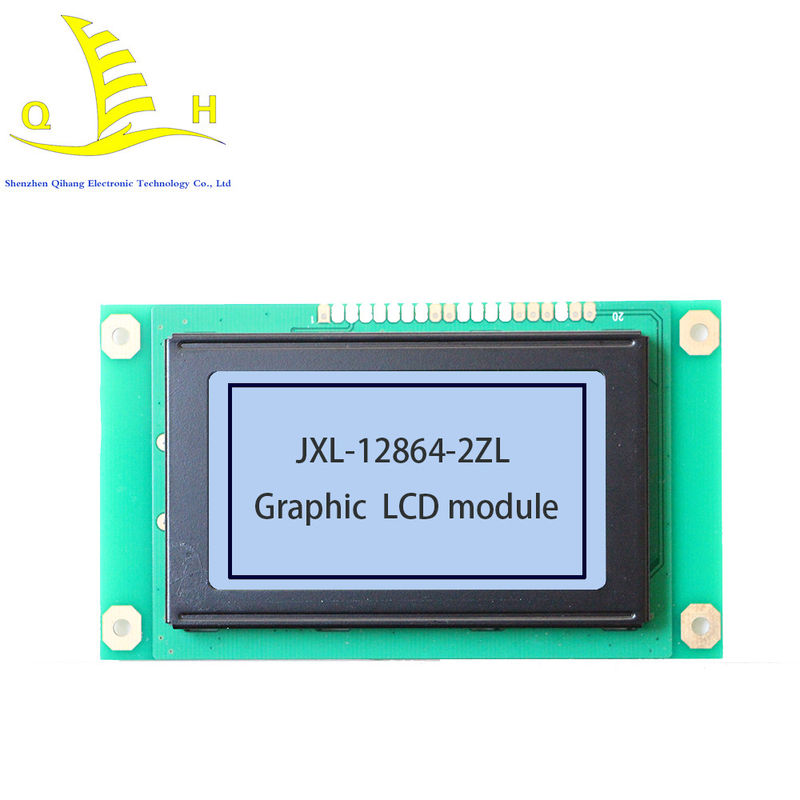

Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module

Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module

  • High Light

    38.6mm Monochrome LCD Display Module

    ,

    1/9 BIAS Monochrome LCD Display Module

    ,

    1/9 BIAS monochrome lcd screen

  • Material
    STN LCD Display Module
  • Operating Temp
    -15℃-65℃
  • Storage Temp
    -20℃-70℃ 113 X65X14
  • Polarizer Type
    Transflective / Positive
  • Viewing Direction
    6 O'clock
  • Dimension
    113 (L) * 65 (W)* 14.0 (H) Mm
  • V.A.
    70.6 (L)*38.6 (W) Mm
  • Drive Mode
    1/64 DUTY ,1/9 BIAS
  • Name
    Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module
  • MOQ
    1piece
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-12864-2ZL
  • Minimum Order Quantity
    1 pcs
  • Price
    USD 5.1-6.2
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module

Factory Customize OEM STN HTN FSTN Monochrome LCD Display Module



Product



Applicaion Alll kinds of meters
Display Content digits+dots+patterns
Operating voltage 3.3V /5.0V
Driving method according to your request
Viewing angle 6H
LCD mode STN
Display mode transflective / positve
Conecting mode Metal pin or rubber or other
STN film Blue film/ yellow film/ grey film  etc.
Voltage driving Dynamic or static
DOT*DOT (W*H) 128*64
Operating voltage -15℃-65℃
Storage voltage -20℃-70℃
Package COB
OEM/ODM Accecpted
System design Lcd module related system software and hardware design accepted
Warranty 12 moths free
Backlight LED (White)
LCD Module type Metering Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS

Packaging & Delivery

Lead Time

Quantity(Pieces) 1 - 2 3 - 100 >100
Est. Time(days) 7 15 To be negotiated

Our Service

We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.

1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.

2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

FAQ

1.Q: How can I get the samples?



A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



2.Q: Are you manufactory or trade company?



A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN, VA monochrome LCD, LED backlights, LCD modules more than 8 years in Shenzhen, China ! Our advanced full set equipments make sure good quality and competitive price!



3.Q: How long can I expect to get the sample?



A:Contact with drawing: 2-3 days Sample time: 10-15 business days



4.Q:Will you offer free sample?



A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.



5.Q: Can you design the lcd in acccordance with our demand?



A:Sure.We will give you the best tooling charge.



6.Q:How long of mass production ?



A: 25-30 business days. It depends on different order quantities and part number.



7.Q:How to place orders ?



A:If you confirm samples ok, Please send us your purchase order by Email or Fax, then we will send you an Invoice for deposit payment. We need to know the following information of your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.



4)Forwarder's contact details if you have any in China.
