12232 COB Connection Monochrome LCD Module For Metering Module

Product Details

Place of Origin: Shenzhen, China

Brand Name: Qihang

Certification: ROHS/CE

Model Number: JXL-12232-3

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: USD 4.2-7.0

Packaging Details: Tray , Standard carton

Delivery Time: 10-15 Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability: 500000 Per Month

Get Best Price
Highlight:

122*32 COB LCD Display Module

,

1/8 BIAS COB LCD Display Module

,

COB alphanumeric lcd display module

Name:
Monochrome 12232 COB Connection LCD Display Module
Operating Temp::
-20℃-70℃
Storage Temp::
-30℃-80℃
Polarizer Type:
Transflective / Positive
Viewing Direction:
6 O'clock
Dimension:
77.5 (L) * 39.4 (W)* 12.80 (H) Mm
V.A.:
61.0 (L)*18.3 (W) Mm
Drive Mode:
1/32 DUTY ,1/8 BIAS
Warranty:
12months
Name:
Monochrome 12232 COB Connection LCD Display Module
Operating Temp::
-20℃-70℃
Storage Temp::
-30℃-80℃
Polarizer Type:
Transflective / Positive
Viewing Direction:
6 O'clock
Dimension:
77.5 (L) * 39.4 (W)* 12.80 (H) Mm
V.A.:
61.0 (L)*18.3 (W) Mm
Drive Mode:
1/32 DUTY ,1/8 BIAS
Warranty:
12months
12232 COB Connection Monochrome LCD Module For Metering Module

Monochrome LCD Module For Metering Module



Product



Name Monochrome LCD Module For Metering Module
Applicaion All kinds of meter
Display Content digits+dots+patterns
Operating voltage 3.3V /5.0V
Driving method according to your request
Viewing angle 6H
LCD mode STN
Display mode transflective / positve
Conecting mode Metal pin or rubber or other
STN film according to your request
Voltage driving Dynamic or static
DOTS 122*32
Operating voltage -20℃-70℃
Storage voltage -30℃-80℃
Package COB
OEM/ODM Accecpted
System design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
Backlight LED (White) Grey backlight
LCD Module type Metering Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS

Packaging & Delivery

Lead Time

Quantity(Pieces) 1 - 2 3 - 100 >100
Est. Time(days) 7 15 To be negotiated

Product Application

Our products are widely used in different equipments which need display terminal, such as instru- mentation, industrial controller, communications equipment, medical equipment,financial machines scheduling, POS terminals, GPS navigation, office automation equipment, text information machine, electric power automation, monitoring, teaching equipment, beauty equipment, small appliances, smart home, intelligent gas heat meter etc.

FAQ

1.Q: Are you manufactory or trade company?



A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN, VA monochrome LCD, LED backlights, LCD modules more than 8 years in Shenzhen, China ! Our advanced full set equipments make sure good quality and competitive price!



2.Q: How long can I expect to get the sample?



A:Contact with drawing: 2-3 days Sample time: 10-15 business days



3.Q: How can I get the samples?



A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



4.Q:Will you offer free sample?



A: Yes, we usually provide 3-5 pcs free samples, you just need to pay the tooling charge.



5.Q:How to place orders ?



A:If you confirm samples ok, Please send us your purchase order by Email or Fax, then we will send you an Invoice for deposit payment. We need to know the following information of your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.



4)Forwarder's contact details if you have any in China.



6.Q:How long of mass production ?



A: 25-30 business days. It depends on different order quantities and part number.



7.Q: Can you design the lcd in acccordance with our demand?



A:Sure.We will give you the best tooling charge.

Product Show

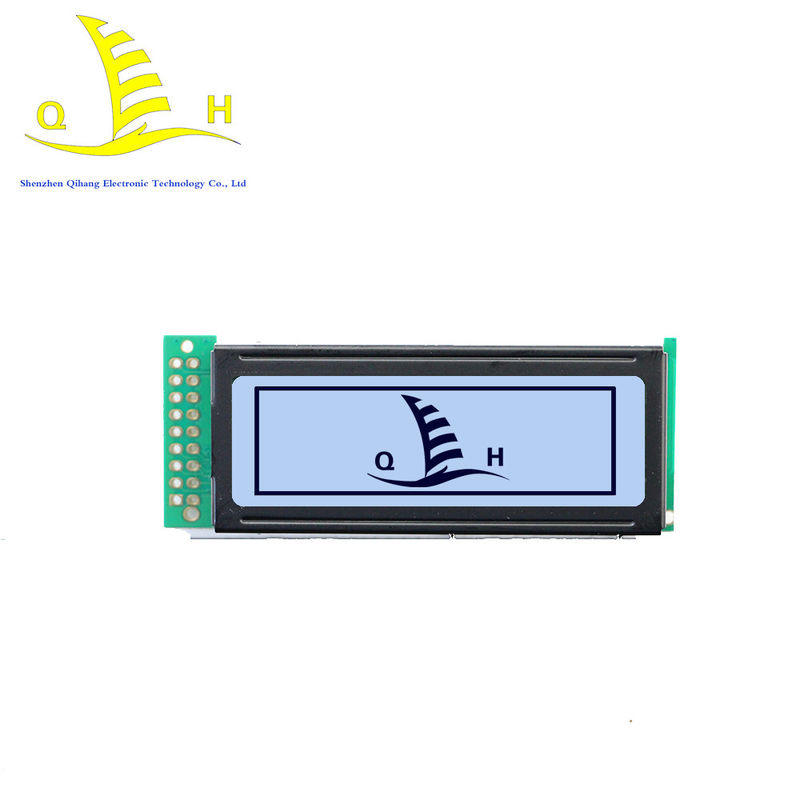

12232 COB Connection Monochrome LCD Module For Metering Module 0
