Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-12232COG-1
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 15-18 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 100,000 Per Month
Name: |

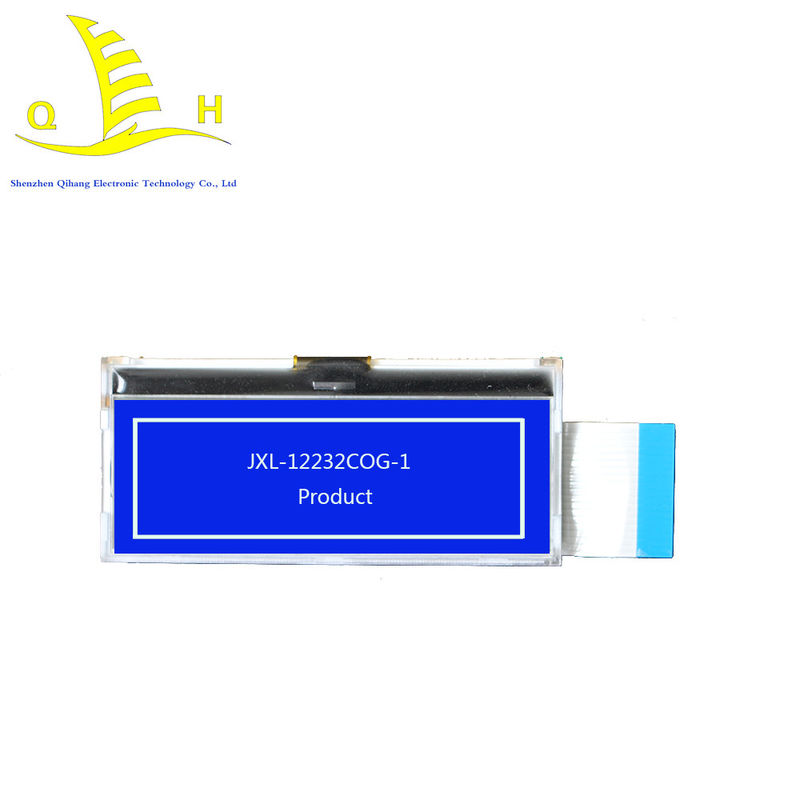

Barcode Scanner Spare Parts 122 32 COG Monochrome LCD Display Module |
Polarizer Type: |
Transmissive / Positive |
Material: |
STN (Blue) |
Dimension: |
65.6 (L) * 29.2 (W)* 5.7 (H) (mm) |
Viewing Area: |
54.8 (L)*19.1 (W) (mm) |
Drive Mode: |
1/32 DUTY ,1/8 BIAS |
Viewing Direction: |
6 O'clock |
Operating Temp:: |
-20℃-70℃ |
Storage Temp:: |
-30℃-80℃ |
MOQ: |
1piece |
Lead Time: |
3 Days For Present Model, 15days For Customize |
Name: |
Barcode Scanner Spare Parts 122 32 COG Monochrome LCD Display Module |
Polarizer Type: |
Transmissive / Positive |
Material: |
STN (Blue) |
Dimension: |
65.6 (L) * 29.2 (W)* 5.7 (H) (mm) |
Viewing Area: |
54.8 (L)*19.1 (W) (mm) |
Drive Mode: |
1/32 DUTY ,1/8 BIAS |
Viewing Direction: |
6 O'clock |
Operating Temp:: |
-20℃-70℃ |
Storage Temp:: |
-30℃-80℃ |
MOQ: |
1piece |
Lead Time: |
3 Days For Present Model, 15days For Customize |
Barcode Scanner Spare Parts 122 32 COG Monochrome LCD Display Module
| Name | Barcode Scanner Spare Parts 122 32 COG Monochrome LCD Display Module |
| Applicaion | All kinds of meter |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V /5.0V |
| Driving method | according to your request |
| Viewing angle | 6H |
| LCD mode | STN |
| Display mode | transflective / positve |
| Conecting mode | Metal pin |
| STN film | according to your request |
| Voltage driving | Dynamic or static |
| DOTS | 122*32 |
| Operating voltage | -20℃-70℃ |
| Storage voltage | -30℃-80℃ |
| Package | COG |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Backlight | LED (White) |
| LCD Control IC | ST7565R |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| Cetification | ISO,SGS |
Lead Time
| Quantity(Pieces) | 1 - 2 | 3 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated |
We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.
1.We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2.Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters
3.Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.
Q1.What’s minimun order QTY of standard module display?
A:MOQ are 500pcs.If we have inventory,10pcs or 100pcs also can be supplied.Please contact with us for small QTY.
Q2.How about payment term?
A:Usually we accept payment before shipment via Trade assurance on Alibaba,Paypal,T/T.
Q3.How about delivery time?
A:30-35days.For inventory products,need 2days
Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry
