Factory Customize STN HTN FSTN 12864 Dots Matrix COG LCD Module

Factory Customize STN HTN FSTN 12864 Dots Matrix COG LCD Module

  • High Light

    15 Pin COG LCD Module

    ,

    12864 Dots COG LCD Module

    ,

    12864 Dots graphic lcd module

  • Name
    STN HTN FSTN 12864 Dots Matrix COG LCD
  • LCD Module
    FSTN (Grey)
  • Display Mode
    Transflective / Positive
  • Viewing Direction
    6 O'clock
  • LCD Operating Voltage
    3.0V (3V-5V.>2.8V Is Ok)
  • Drive IC
    ST7565A
  • Dot Size (W*H)
    0.43 Mm X 0.46 Mm
  • Dot Pitch (W*H)
    0.45 Mm X 0.48 Mm
  • Factory Origin
    Guangdong China
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-12864COG-19A0
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

Factory Customize STN HTN FSTN 12864 Dots Matrix COG LCD Module

Factory Customize STN HTN FSTN 12864 Dots Matrix COG LCD Module

Product Details

Name STN HTN FSTN 12864 Dots Matrix COG LCD Module
Place of Origin: Guangdong, China
Display Content
128x64 DOTS
Operating Voltage 3.3V (3V-5V >2.8v Is Ok)
Driving method according to your request
Viewing angle 6 H
Display Positive
Polarizer Transflective
View Area 59.0 (H) x 34.0 (V) mm
Outside Dimensions 64.0 (H)x 46.5 (V)x 4.0 (D)mm
Voltage Driving Dynamic or static
Connector 15 Pin or according to your request
Operating Temperature -20℃-70℃
Storage Temperature -30℃-80℃
Package COG + FPC
Drive Method 1/64Duty, 1/9 Bias, vop 9.0v
System Design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
Backlight

White (side)

LCD Module Type Time Module
Sample Lead Time 3-7 working days
Customize Lead Time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS

Product Application

STN HTN FSTN 12864 Dots Matrix COG LCD Module:

Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry



Building Intercom System, Intelligent Home System, Intelligent Controller.

Industrial Automation Instrument: Flowmeter, Pressure, Level Meter, Thermometer, Control Instrument, Microcomputer Protection Device, Solar Inverter.

Locker, Bag Locker, Bag Locker

Medical Equipment: Oxygen Generator, Blood Pressure Meter, Infusion Pump, Analytical Instrument, Biochemical Instrument.

Operating Gas Detector: Gas Composition Analyzer, Fire Alarm, Transmitter, Sensor, Ozone Monitoring System, Calibration Instrument

Electronic Products: Generator Controller, Electric Actuator, Radio, Audio, Small Appliances, Bracelet, Watch, Recording Pen, Water Meter, Electricity Meter, Gas Meter.

Access Control, One Card, Attendance System, Fingerprint.

FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1) Product information-Quantity, part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Product Show

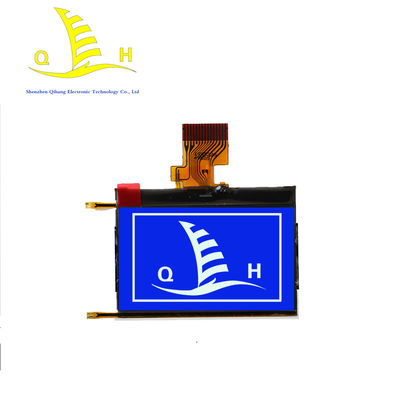

Factory Customize STN HTN FSTN 12864 Dots Matrix COG LCD Module 0
Factory Customize STN HTN FSTN 12864 Dots Matrix COG LCD Module 1
