Factory Customize TN STN HTN 7 segment LCD display Panel Modules

Product Details

Place of Origin: Shenzhen, China

Brand Name: Qihang

Certification: ROHS/CE

Model Number: JXL-HOP14329A

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Tray , Standard carton

Delivery Time: 20-25 Work Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability: 100,000 Per Month

Get Best Price
Highlight:

12:00 O'Clock Custom Segment LCD

,

FSTN Custom Segment LCD

,

FSTN seven segment lcd

Name:
Factory Customize TN STN HTN 7 Segment LCD Display Panel Modules
Storage Temp::
-30℃- +80℃
Polarizer Mode:
Transmissive, Transflective, Reflective
Material:
VA TN, HTN, STN, FSTN
LCD Operating Voltage:
3.3V / 5.0V
Backlight:
Without Backlight
Custom:
Customized
Viewing Direction:
12:00 9:00 6:00 3:00
MOQ:
1piece
Lead Time:
3 Days For Present Model, 15days For Customize
Name:
Factory Customize TN STN HTN 7 Segment LCD Display Panel Modules
Storage Temp::
-30℃- +80℃
Polarizer Mode:
Transmissive, Transflective, Reflective
Material:
VA TN, HTN, STN, FSTN
LCD Operating Voltage:
3.3V / 5.0V
Backlight:
Without Backlight
Custom:
Customized
Viewing Direction:
12:00 9:00 6:00 3:00
MOQ:
1piece
Lead Time:
3 Days For Present Model, 15days For Customize
Factory Customize TN STN HTN 7 segment LCD display Panel Modules

Factory Customize TN STN HTN 7 segment LCD display Panel Modules

Product Details

Name Factory Customize TN STN HTN 7 segment LCD display Panel Modules
Place of Origin Shenzhen, Guangdong, China
Operating Voltage 3.3V / 5.0V
Driving Method According to your request
Viewing Angle 12:00 9:00 6:00 3:00
LCD Mode TN, HTN, STN, FSTN, VA
Display Mode Transmissive, Transflective, Reflective
Voltage Driving Dynamic or static
Connector Pin or Plug-and-jack type or FPC
Operating Temperature -20℃-70℃
Storage Temperature -30℃-80℃
OEM/ODM Accecpted
System Design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
PCB Without
LCD Module Type Meter Module
Sample Lead Time 3-7 working days
Customize Lead Time 15-30 working days
Packaging One module in a foam board, all in small carton foam protecting, small carton in big carton
Cetification ISO,SGS





What can we custom?

Display type :VA / TN / HTN / STN / FSTN / FFSTN / DFSTN

LCD structure:LCD Glass With/Without backlight COB,COG

Polarizer:Transflective, Transmissive, Reflective, Anti- Glare, Anti-UV

Background :Gray, Yellow-Green, Blue, Black

Operating temperature:-30 ℃ +85 ℃, Customization

Connector/Connection:Metal PIN, Zebra, Heat seal, Flat cable(FPC)

How to process a custom segment LCD panel

  1. Discuss LCD details
  2. Quote price based on customer's LCD idea or design
  3. Prepare drawings upon customer's confirm for the price and the receipt of tooling fee
  4. Make samples based on confirmed drawing
  5. Process with order according to customers production schedule

Our Product

We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.



1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.



2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters



3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

Items

1: LCD is composed of 2 pieces of thin glass sealed by sealant, therefore, in the process of use, it is strictly prohibited to drop, hit by hard objects, squeeze LCD surface, and assembly force is not equal, in order to avoid LCD damage and scrap.



2: For the LCD products with metal pins, the use of the process to strictly prevent the pull, twist of metal pins, welding pins, welding time should be short (less than 3-4S), so as not to destroy the reliable connection between metal pins and LCD, LCD can not work normally.



3. Since the LCD surface is plastic polarized light sheet, it should be prevented from being scratched or defiled by hard objects during use. The protective film of the polarized light sheet on the LCD viewing surface should be removed when the final assembly is completed.



4. Since LCD is low-voltage and micro-power consumption product, if the glass surface is conductive due to moisture, crosstalk display will be generated, resulting in the LCD can't display normally.



5. In order to prevent the liquid crystal from producing electrochemical reaction and affecting the life of the LCD, the driving voltage shall be guaranteed to have the smallest DC component (< 50mA).



6: Liquid crystal and polaroid are organic matter, in the process of use, should prevent a long time exposure to ultraviolet radiation, photochemical reaction on the production, resulting in LCD performance degradation.



7: Liquid crystal can only present liquid crystal state within a certain temperature range, so only use and store within the specified temperature range, LCD can normally display.

Company Introduction

Qihang is a professional manufacturer of LIQUID crystal display (LCD), backlight (LED) and liquid crystal display (LCM).



The company specializes in tailor-made TN-LCD, HTN-LCD, STN-LCD, FSTN-LCD, various backlight/LIQUID crystal display modules and PCB control boards for customers with various specifications and different technical requirements.


Our products are widely used in instruments and meters, electromechanical equipment control board, boiling water machine, water heater, range hood, refrigerator, air conditioner, disinfection cabinet, soybean milk machine and other small household appliances control board, electric vehicle instrumentation, motorcycle instrumentation, automobile instrumentation, charging stations, thermometers, blood glucose meters, physiotherapy treatment equipment and other medical equipment products.


At present, the company has more than 3000 different specifications of TN, HTN, STN, BTN LCD screen.


Welcome customers to inquire, order our products!


The company provides a large number of various LCD LCD, and at the same time provide a variety of LCD LCD customized services! Low price, good quality! Short delivery time! Welcome to inquire!

FAQ

Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low,STN was high.

Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.

Product Show

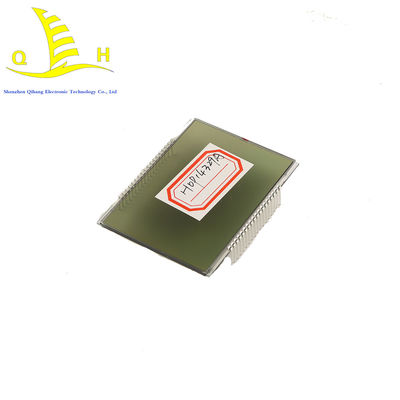

Factory Customize TN STN HTN 7 segment LCD display Panel Modules 0
