19264 Dot Matrix STN FSTN Graphic Liquid Crystal Display Module

19264 Dot Matrix STN FSTN Graphic Liquid Crystal Display Module

  • High Light

    192x64 DOTS Liquid Crystal Display module


    Fstn Graphic Liquid Crystal Display module


    Matrix lcm liquid crystal module

  • Name
    STN FSTN Graphic Liquid Crystal Display Module
  • LCD Module
    FSTN (Blue)
  • Display Mode
    Transmissive / Negative
  • Drive IC
    ST7920 & ST7921 Or Equivalent
  • Operating Temperature
    -20℃- +70℃
  • Storage Temperature
    -30℃- +80℃
  • Place Of Origin
    Guangdong, China
  • Brand Name
  • Interface
    1/32 Duty, 1/6 Bias, VOP5.0V
  • Backlight
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 pcs
  • Price
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

19264 Dot Matrix STN FSTN Graphic Liquid Crystal Display Module

19264 Dot Matrix STN FSTN Graphic Liquid Crystal Display Module


Product Details


Place of Origin: Shenzhen, Guangdong, China
Display Content
192 x 64 DOTS
Operating voltage 3.3V / 5.0 V
Driving method According to your request
Viewing angle 6 o'clock
Polarizer Transmissive
Display Mode Negative
View Area 104.0 (H) x 39.0 (V) mm
Outside Dimensions 130.0 (H)x 65.0 (W)x 12.5 (H)mm
Voltage driving Dynamic or static
Connection 20 Pin
Operating temperature -20℃- +70℃
Storage temperature -30℃- +80℃
Package COB
Drive method 1/32 Duty, 1/6 Bias, VOP5.0V
System design Lcd module related system software and hardware design accepted
Warranty 12 Month free, payed warranty lifttime

White LED back light (side), VDD+5V.

LCD Module type Meter LCD Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS



1.We are professional LCD module manufacture in China with precise and advanced equipments.

2.High quality Control with CE,ROHS and so on approved.

3.More than 8 years of industry experience and involved main markets all over the world

4.Dedicated and professional sales team will offer you 24 hours online and immediate service

5.OEM and ODM support,12 months warranty for all of our products

6.Our mission is to help our customers achieve success, then fulfill our both dreams


Pre-sales service :


1.Our team design and make solutions based on different requirements from different customers.

2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.


After-sales services:


1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We have professional engineer customer to keep fastly reply.


Product Application


We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.

1.We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.

2.Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

3.Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.




Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low,STN was high.

Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.

Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.


Product Show

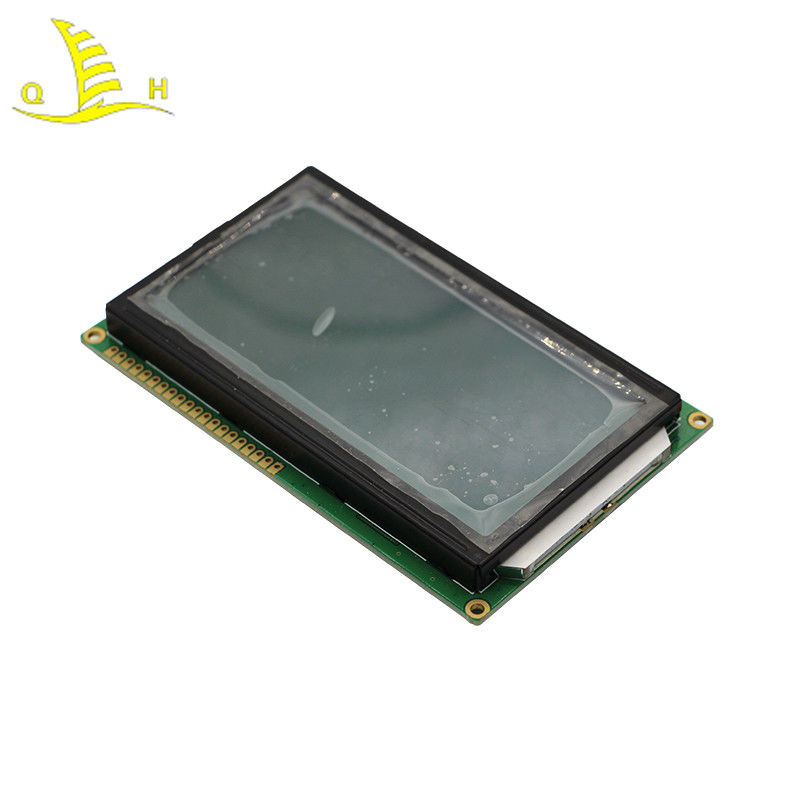

19264 Dot Matrix STN FSTN Graphic Liquid Crystal Display Module 0
19264 Dot Matrix STN FSTN Graphic Liquid Crystal Display Module 1
