Home > products > OLED Display Module > 0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module

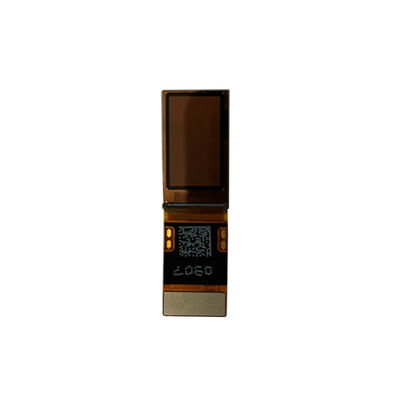

0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module

Product Details

Place of Origin: Shenzhen, China

Brand Name: Qihang

Certification: ROHS/CE

Model Number: JXL-E1195AM2-FPC1-RD-02

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Tray , Standard carton

Delivery Time: 10-15 Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability: 300000 Per Month

Get Best Price
Highlight:

MIPI I2C OLED Display Module

,

RM67162 OLED Display Module

,

350nits OLED Module Panel

Resolution:
1920*1080 Dots
Diagonal Size:
0.71 Inch / 0.71"
Weight:
0.8g
Interface:
MIPI + I2C
Display Color:
16.7 M
Brightness:
350nits
Touch Panel:
On-cell CTP
Drive IC:
RM67162
Name:
0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module
MOQ:
1piece
Resolution:
1920*1080 Dots
Diagonal Size:
0.71 Inch / 0.71"
Weight:
0.8g
Interface:
MIPI + I2C
Display Color:
16.7 M
Brightness:
350nits
Touch Panel:
On-cell CTP
Drive IC:
RM67162
Name:
0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module
MOQ:
1piece
0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module

0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module



Quick Details



This is 0.71 inch diagonal, FHD resolution(1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.



Potential applications:

Virtual Reality application(AR/VR), Head mounted displays, Near-Eye Displays etc



0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module

0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module 0

Features

  1. Small-size, high resolution 0.71” FHD Display PPI=3135
  2. AP Operated Resolution 1920 x 1080 up to 90Hz
  3. Full color mode , 16.7M colors
  4. Fast response
  5. Thin and light in weight
  6. Color enhancement
  7. High contrast
  8. IR compensation with 2D
  9. Idle mode for save power
  10. Scan direction selection, up or down
  11. Interface,Support MIPI only or MIPI+I2C
  12. Support VESA-DSC in-chip decoder (3X and 3.75X compression ratio)
  13. Support scaling up 1.33x (1440x810 to 1920 x 1080) and 1.5x (1280x720 to 1920 x 1080)
  14. Sequential/Global emission

Packaging and delivery

0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module 10.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module 2

Delivery Details : 3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register

Packing Details : Packing with box, it also can package as your request



0.71 Inch 350nits 1920x1080 FHD RM67162 MIPI I2C OLED Display Module 3



FAQ



Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.



Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.



Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.
