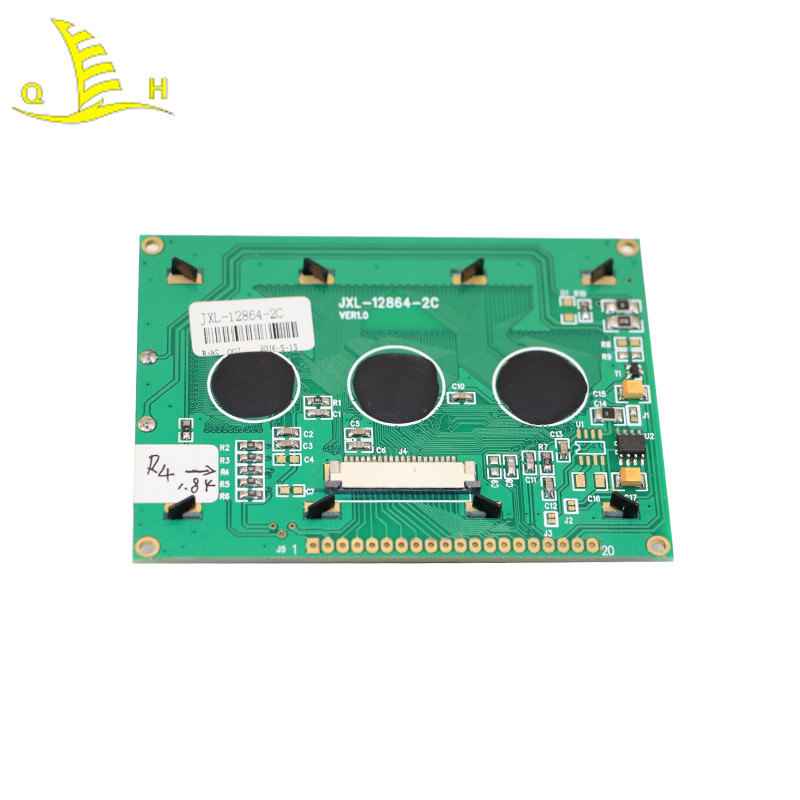

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

  • High Light

    HTN Graphic LCD Display Module

    ,

    Graphic LCD Display Module 128X64

    ,

    Dynamic LCM Lcd Graphic Display

  • Name
    Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
  • Display Type
    Dot Matrix LCM
  • Polarizer Type
    Transflective
  • Display Mode
    Positive
  • Dimension
    93.0×70.0×14.0 Mm
  • V.A.
    70.6*38.6 Mm
  • Backlight
    White LED Light
  • Material
    HTN LCD Panel
  • Operating Temp
    -25℃ To +70℃
  • Storage Temp
    -30℃ To +80℃
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-12864-2C
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module



Details



Name LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

Applicaion

Industrial control lcd display

Dimension

93.0×70.0×14.0 mm

Operating voltage

5.0V

V.A.

70.6*38.6 mm

Viewing angle

6 o'clock

LCD mode

STN

Display mode

Transflective ; Positve

Conecting mode

Metal pin or rubber or other

STN film

Green-yellow film

Voltage driving

Dynamic or static

DOTS

128*64

Operating voltage

-25℃-70℃

Storage voltage

-30℃-80℃

Package

COB

OEM/ODM

Accecpted

System design

Lcd module related system software and hardware design accepted

Warranty

12 moths free, payed warranty lifttime

Backlight

LED (Green)

LCD Module type

Metering Module

Sample lead time

3-7 working days

Customize lead time

15-30 working days

Packaging

One module in a bag, bags in small carton foam protecting, small carton in big carton

Cetification

ISO,SGS



Packaging & Delivery



Lead Time

Quantity(Pieces)

1 - 5

6 - 100

>100

Est. Time(days)

7

15

To be negotiated



Product Application



Telecommunication Devices

Telephone,interphone,watch,tablet PC,radio,etc

Consumer Products

Camera,DVD player,toy, Cell Phone,game player,etc

Technical Equipment

Elevator controller,Industrial machine,etc

Office Automation

Printer,scanner,attendance machine,fax machine,etc

Home Appliances

Air-condition display,refrigerator,electric cooker,video doorbell,etc

Automobile

GPS,video player,speedometer,audio broadcast,etc

IT Products

Camera,handheld digital video,projector,media play,tablet PC,etc

Medical Equipment

Ultrasound machine,therapeutic equipment Blood pressure meter,etc



LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module



Drawing

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module 0



FAQ



1. Q: How can I get the samples? Standard sample and Custom.
A: Custom sample : Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing →

confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect

2.Q: How long can I expect to get the sample?
A: Standard sample: 3 work days after confirming the order.
Custom sample: according to the draw base on 5-20 days

3.Q: Can you design the LCD in accordance with our demand?
A: Yes,.We will give you the best tooling charge.

4. Q:. What is the warranty?
A: One year

5.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice

for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.
