Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-12864-7B
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 20-25 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 100000 Per Month
Name: |
Customize STN Transflective Polarizer 128x64 Dots COB LCD Display Module |
LCD Module: |
STN |
Display Mode: |
Transflective / Positive |
Dot Size (W*H): |
0.28*0.35(mm) |
Dot Pitch (W*H): |
0.39*0.32(mm) |
Viewing Direction: |
6 O'clock |
Drive IC: |
NT7108C |
Drive Method: |
1/64 Duty, 1/9 Bias |
Warranty: |
12months |
MOQ: |
1piece |
Name: |
Customize STN Transflective Polarizer 128x64 Dots COB LCD Display Module |
LCD Module: |
STN |
Display Mode: |
Transflective / Positive |
Dot Size (W*H): |
0.28*0.35(mm) |
Dot Pitch (W*H): |
0.39*0.32(mm) |
Viewing Direction: |
6 O'clock |
Drive IC: |
NT7108C |
Drive Method: |
1/64 Duty, 1/9 Bias |
Warranty: |
12months |
MOQ: |
1piece |

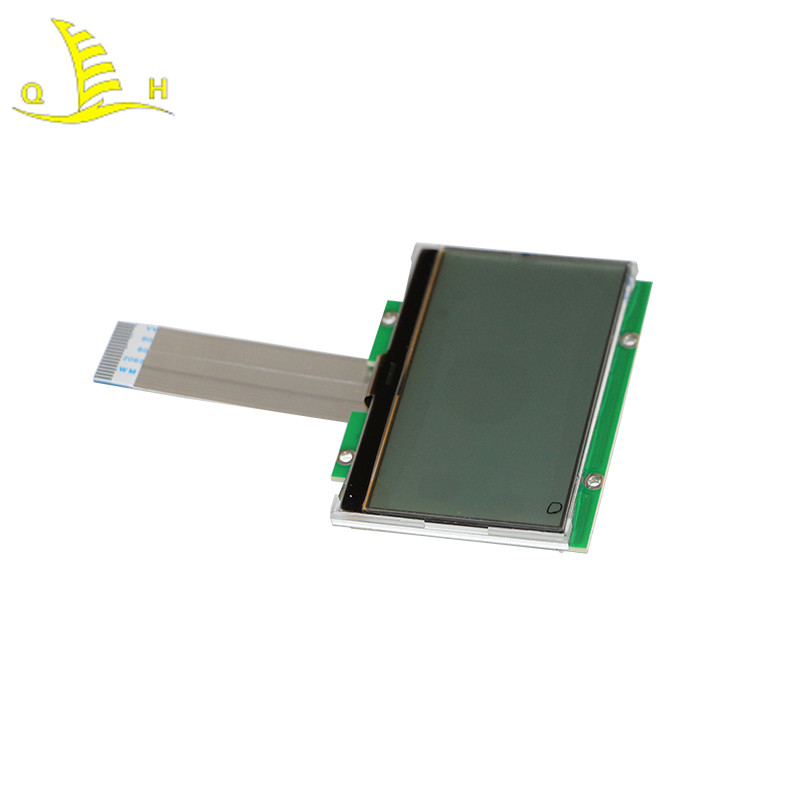

Customize STN Transflective Polarizer 128x64 Dots COB LCD Display Module
Product Details
| Name | Customize STN Transflective Polarizer 128x64 Dots COB LCD Display Module |
|
Place of Origin: |
Shenzhen, Guangdong, China |
|
Display Content |
128*64 DOTS |
|
Operating Voltage |
5V |
|
Driving Method |
According to your request |
|
Viewing Angle |
6 o'clock |
|
Display |
Positive |
|
Polarizer |
Transflective |
|
View Area |
43.5 (H)*29.0 (V) (mm) |
|
Outside Dimensions |
54.0 (H)*50.0 (V)*9.9 (D)(mm) |
|
Voltage Driving |
Dynamic or static |
|
Connector |
20 Pin or according to your request |
|
Operating Temperature |
-20℃-55℃ |
|
Storage Temperature |
-30℃-70℃ |
|
Package |
COB |
|
Drive Method |
1/64Duty, 1/9 Bias, VOP 9.0V |
|
System Design |
Lcd module related system software and hardware design accepted |
|
Warranty |
12 Month free, payed warranty lifttime |
|
Backlight |
Yellow - Green LED back light |
|
LCD Module Type |
Meter Module |
|
Sample Lead Time |
3-7 working days |
|
Customize Lead Time |
15-30 working days |
|
Packaging |
One module in a bag, bags in small carton foam protecting, small carton in big carton |
|
Cetification |
ISO,SGS |
Technical Service
If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.
Product Application
Building Intercom System, Intelligent Home System, Intelligent Controller.
Industrial Automation Instrument: Flowmeter, Pressure, Level Meter, Thermometer, Control Instrument, Microcomputer Protection Device, Solar Inverter.
Locker, Bag Locker, Bag Locker
Medical Equipment: Oxygen Generator, Blood Pressure Meter, Infusion Pump, Analytical Instrument, Biochemical Instrument.
Operating Gas Detector: Gas Composition Analyzer, Fire Alarm, Transmitter, Sensor, Ozone Monitoring System, Calibration Instrument
Electronic Products: Generator Controller, Electric Actuator, Radio, Audio, Small Appliances, Bracelet, Watch, Recording Pen, Water Meter, Electricity Meter, Gas Meter.
Access Control, One Card, Attendance System, Fingerprint.
Shipping Warranty
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.
FAQ
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
Q2. How to order lcd?
A: Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.
1) Product information-Quantity, part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A: The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
Q4. When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately.
