Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-19264B-1
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 20-25 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 100,000 Per Month
Name: |
192*64 Front Transmissive Polarizer Monochrome LCD Graphic Display Module |
Display Type:: |
192*64 |
Operating Temp: |
-20℃~+70℃ |
Storage Temp: |
-30℃~+80℃ |
LCD Operating Voltage: |
3V ~ 5.0V |
View Direction: |
6 O'clock / 12 O'clock |
Front Polarizer: |
Transmissive Polarizer |
Back Polarizer: |
Reflective Polarizer |
Connection: |
PIN Connection |
Driver IC: |
S6B0107, S6B0108 |
Name: |
192*64 Front Transmissive Polarizer Monochrome LCD Graphic Display Module |
Display Type:: |
192*64 |
Operating Temp: |
-20℃~+70℃ |
Storage Temp: |
-30℃~+80℃ |
LCD Operating Voltage: |
3V ~ 5.0V |
View Direction: |
6 O'clock / 12 O'clock |
Front Polarizer: |
Transmissive Polarizer |
Back Polarizer: |
Reflective Polarizer |
Connection: |
PIN Connection |
Driver IC: |
S6B0107, S6B0108 |

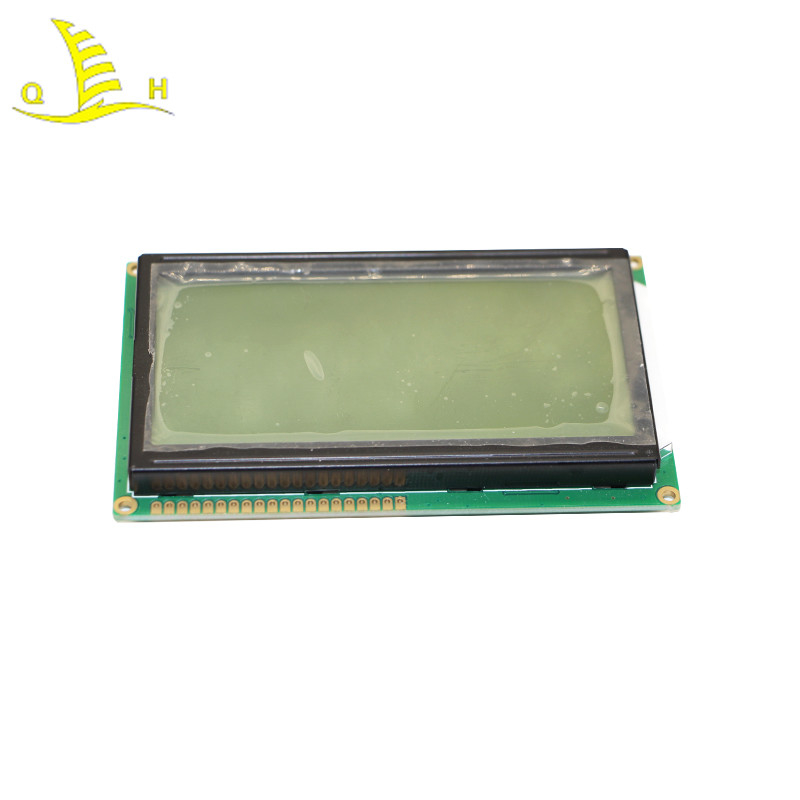

192 64 Front Transmissive Polarizer Monochrome LCD Graphic Display Module
19264 dots matrix LCD module feature
|
Item |
Graphic LCD display |
|
Display Format |
192*64 |
|
Outline Size |
88.0*43.0*5.3 (mm) |
|
Viewing Area |
84.62*34.06 (mm) |
|
Display Mode |
FSTN, positive, transmissive |
|
Driving method |
1/64duty |
|
Operating Voltage |
3V |
|
Operating Temperature |
-20℃~+70℃ |
|
Storage Temperature |
-30℃~+80℃ |
|
Controller |
ST7525 |
LCD Module can display letters, numbers, Chinese fonts and graphics, mixed with graphics and text display screen. Can display 192 (columns) × 64 (rows) lattice. Complete graphical display can also display 12×4 pcs (16 × 16 dot matrix) Chinese characters.
19264 lcd module Quick Details
Model Number: JXL-19264B-1
Brand Name: Qihang
Type: STN
Backlight: White LED Backlight
Polarizer Type: Transmissive / Negative
Interface: MCU-8 Bit / MCU-16 Bit
Driving Method: 1/64 Duty, 1/9 Bias
Viewing Direction: 6 O'clock / 12 O'clock
Operating Voltage: VOD=5.0 V
Operating Temp: -20℃ to +70℃
Storage Temp: -30℃ to +80℃
Place of Origin: Shenzhen, Guangdong, China
Certification: ROHS, CE
Service
Qihang company owns successful experience of 150+ big projects,
Qihang LCM provides instant delivery for standard products from stock,
7-15 days for new samples, 7-10 days for new FPC,
15 days for new Backlight,18 days for new Capactive touch panels,
Lead time for mass production of standard products could be as fast as 15 days,
Lead time for special products is as fast as 3 weeks.
Providing Good products:
All products are 100% tesed before shipment .We will do reliability tests,including high & low terperature tests,heat impact test and vibration test as per customer's special requirements.
Providing Excellent Service
We are not only manufacture products,but also provide display solution.We can realize your project from your product concept to real product,to help you save sourcing cost.In the mean time.we provide competitive price,on-time delivery and efficeint work with customers
Application
Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
Packaging
Choose the right package according to the size of the product and carry out multiple protections to ensure that the product avoids damage during transportation.
FAQ
Q:The LCD screen can be exported directly? what certification could provide?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.
Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.
Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.
