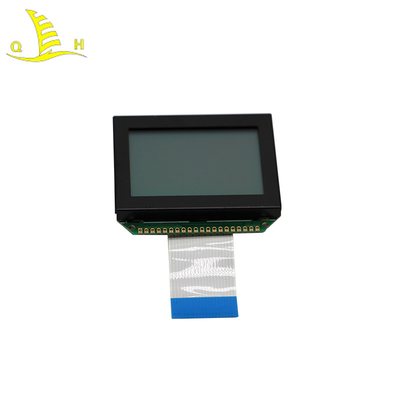

STN 128 64 Transflective Positive Dots Matrix LCD Display Module

STN 128 64 Transflective Positive Dots Matrix LCD Display Module

  • High Light

    NT7107C Graphic LCD Display Module

    ,

    Transflective Graphic LCD Display Module

    ,

    STN 128x64 LCD Graphic Display

  • Name
    STN 128 64 Transflective Positive Dots Matrix LCD Display Module
  • LCD Module
    STN (Y-G)
  • Display Mode
    Transflective / Positive
  • Viewing Direction
    6:00 O'clock
  • Drive IC
    NT7107C
  • Drive Method
    1/64Duty
  • Dot Size (W*H)
    0.28 Mm X 0.35 Mm
  • Dot Pitch (W*H)
    0.39 Mm X 0.32 Mm
  • Lead Time
    3 Days For Present Model, 15days For Customize
  • MOQ
    1piece
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-12864-7C
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

STN 128 64 Transflective Positive Dots Matrix LCD Display Module

STN 128 64 Transflective Positive Dots Matrix LCD Display Module

Product Details

Name STN 128 64 Transflective Positive Dots Matrix LCD Display Module
Place of Origin: Shenzhen, Guangdong, China
Display Content
128*64 DOTS
Operating Voltage 5V
Driving Method According to your request
Viewing Angle 6 o'clock
Display Positive
Polarizer Transflective
View Area 43.5 (H) x 29.0 (V) mm
Outside Dimensions 54.0 (H)x 50.0 (V)x 9.9 (D)mm
Voltage Driving Dynamic or static
Connector 20 Pin or according to your request
Operating Temperature -20℃-55℃
Storage Temperature -30℃-70℃
Package COB
Drive Method 1/64Duty, 1/9 Bias, VOP 9.0V
System Design Lcd module related system software and hardware design accepted
Warranty 12 Month free, payed warranty lifttime
Backlight

Yellow - Green LED back light

LCD Module Type Meter Module
Sample Lead Time 3-7 working days
Customize Lead Time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS



Packaging & Shipping



We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

Product Application

The product is monochrome dots matrix lcd display,which widely used in industrial meter,medical device,financial device and household.

STN 128 64 Transflective Positive Dots Matrix LCD Display Module 0

Product Show

STN 128 64 Transflective Positive Dots Matrix LCD Display Module 1
STN 128 64 Transflective Positive Dots Matrix LCD Display Module 2
STN 128 64 Transflective Positive Dots Matrix LCD Display Module 3



RFQ



1.Long Term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. Qihang gives the promise to
every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end
supply.Some controller IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent
is unavailable, we’ll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your
research time is very long.


2. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of
one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the
date of shipment.If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.

3. What is not covered?
Warranty is void and no repair or replacement is granted under the following conditions:
3-1. Evidence of mechanical stress to parts including but not limited to.
3-2. Damaged or broken glass or touch screen.
3-3. Damaged conductors/components.
3-4. Damaged polarizer.
3-5. Damaged mounting holes.
3-6. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind.
3-7. Addition or removal of components.
3-8. Evidence of damage caused by applying incorrect voltage.
3-9. Evidence of damage caused by operating outside of specified temperature range.
3-10. Evidence of damage caused by electrostatic discharge (ESD).

4. What if I have a defective product under warranty?
We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or
refurbished product."Refurbished" means a component that has been returned to its original specifications. We do not give refunds,
credit memos.

5. How do I make a warranty claim?
For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.
