Product Details
Place of Origin: CHINA
Brand Name: QIHANG
Certification: CE ROHS
Model Number: QH
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD0.1 - USD10
Packaging Details: Blister packing within carton
Delivery Time: 5-10days
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces/day
Item Name: |
RGB TLCM PCAP 10 Points Touch 7 Inch TFT LCD Screen Module |
Item Color: |
Colorful |
Item Specification: |
Support And Confirm |
PCB: |
Upon Client Request |
Connection: |
COB COG |
Connect By: |
FPC |
Back Light: |
YES |
Back Group: |
Grey，Blue， White |
Screen Size: |
Flexible |
Resolution: |
OEM |
Item Name: |
RGB TLCM PCAP 10 Points Touch 7 Inch TFT LCD Screen Module |
Item Color: |
Colorful |
Item Specification: |
Support And Confirm |
PCB: |
Upon Client Request |
Connection: |
COB COG |
Connect By: |
FPC |
Back Light: |
YES |
Back Group: |
Grey，Blue， White |
Screen Size: |
Flexible |
Resolution: |
OEM |
RGB TLCM PCAP 10 Points Touch 7 Inch TFT LCD Screen Module
TFT displays are full color LCDs providing bright, vivid colors with the ability to
show quick animations, complex graphics, and custom fonts with different touchscreen
options. Available in industry standard sizes and resolutions. These displays come as
standard, premium MVA, sunlight readable, or IPS display types with a variety of
interface options including HDMI, SPI and LVDS.
7 inch display panel LCD screen IPS LCM module:
| Name | RGB TLCM PCAP 10 Points Touch 7 Inch TFT LCD Screen Module | ||
|
Resolution
|
1024(RGB)×600
|
||
|
Applications
|
Medical Display/Industrial Equipment
|
||
|
Type
|
a-Si TFT-LCD, liquid crystal module
|
||
|
Display area
|
154.21(H)*85.92(V)
|
||
|
Appearance size
|
164.9x100x5.85 mm
|
||
|
Panel brightness
|
430 cd/m² (Typ.)
|
||
|
Contrast
|
600:1 (Typ.)
|
||
|
Visual angle
|
85/85/85/85 (Typ.)
|
||
|
Signal interface
|
40 pins LVDS (1 ch, 8-bit)
|
||
|
Panel voltage
|
3.3V (Typ.)
|
||
|
Working temperature
|
-20 ~ 70 °C
|
||

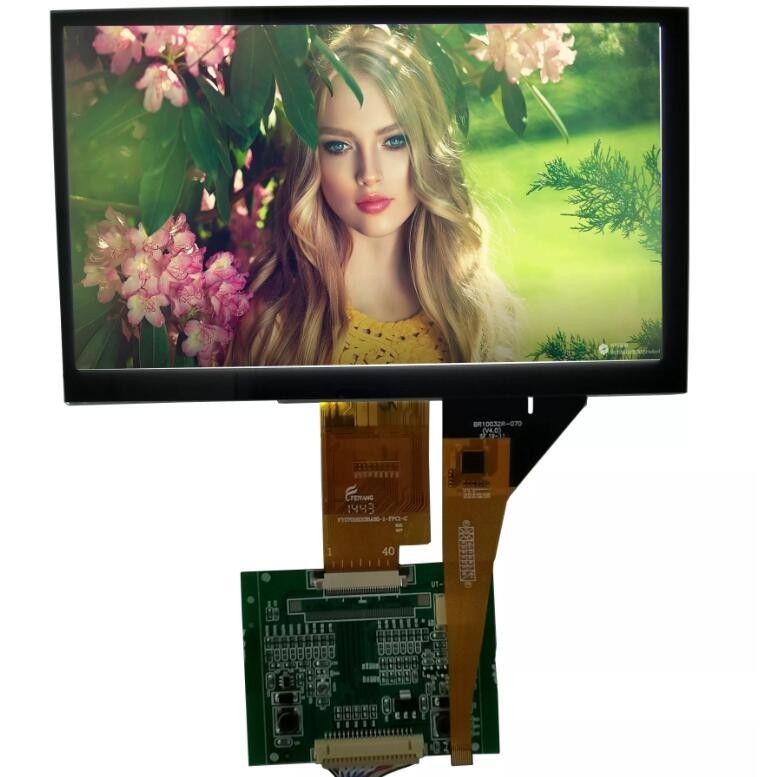

7 Inch Display Panel TFT LCD Screen Photo:
For Other product Application:
Qihang Workshop:
Certification:
F A Q:
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in case of non-human injury, we will provide free repair or replacement, including delivery costs.Beyond warranty: we provide repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can design and produce the appearance, logo, material, color, size,installation method and so on according to customers' requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before delivery
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within 3-7 days;No inventory for 20-25 days;For customized samples and bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no free samples.If you need to order a sample for inspection, we would like you to pay the sample fee and freight, and the sample will be sent to you upon receipt of payment.
