Product Details
Place of Origin: CHINA
Brand Name: Shenzhen Qihang Electronics
Certification: CE ROHS
Model Number: JXL-12864COG-14
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: USD0.1-USD10
Packaging Details: Blister packing within carton
Delivery Time: 20-25 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100,000 pieces/day
Brand Name:: |
Shenzhen Qihang Electronics |
Place Of Origin:: |
Guangdong, China |
Supplier Type:: |
Manufacturer |
Perspective: |
Transmissive |
Type: |
COG |
Display Size: |
33.7*30.5*1.8(mm) |
EFFECTIVE DISPLAY AREA:: |
30.7*23.0(mm) |
VIEWING DIRECTION:: |
12'O Clock |
Operating Temperature:: |
-10 ~ +60 |
Storage Temperature:: |
-20~ +70 |
Driver IC: |
UC1705 |
DUTY BIAS:: |
1/64 Duty, 1/9 Bias |
Backlight: |
White Side Backlight |
Brand Name:: |
Shenzhen Qihang Electronics |
Place Of Origin:: |
Guangdong, China |
Supplier Type:: |
Manufacturer |
Perspective: |
Transmissive |
Type: |
COG |
Display Size: |
33.7*30.5*1.8(mm) |
EFFECTIVE DISPLAY AREA:: |
30.7*23.0(mm) |
VIEWING DIRECTION:: |
12'O Clock |
Operating Temperature:: |
-10 ~ +60 |
Storage Temperature:: |
-20~ +70 |
Driver IC: |
UC1705 |
DUTY BIAS:: |
1/64 Duty, 1/9 Bias |
Backlight: |
White Side Backlight |

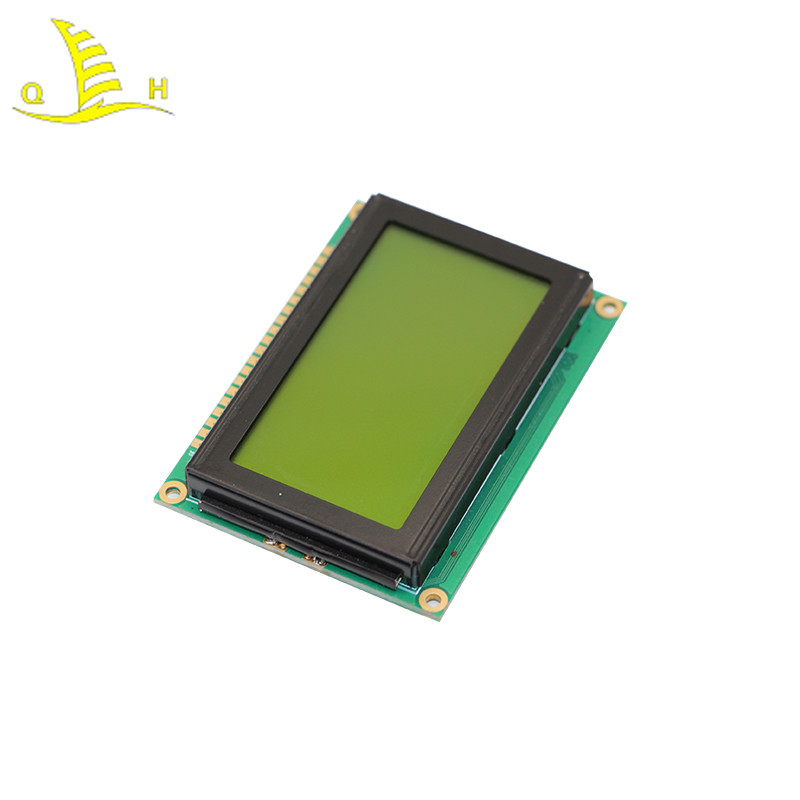

30.7*23 LCD Screen Module With UC1705 IC TransFLECTIVE 12.00 Viewing Direction
COMPANY PROFILE
Shenzhen Qihang Electronic Technology Co., Ltd. was established in 2012, is a professional R & D, production, sales of liquid crystal display module manufacturing enterprises, since the establishment of the company, the full use of their own resources, learning and learning from the advanced technology and management experience at home and abroad, has been rapidly developed to LCD, LCM, TFT-LCD and other core products, with independent research and development and independent design capabilities of the The company is a production technology enterprise with independent research and development and independent design capability. The products have been widely used in finance, communication, communication, medical equipment, household appliances, industrial control, instrumentation, electric power, car electronics, electronic toys, security management and other display information industry, the company through the cooperation with well-known enterprises around the talent, products throughout the country and Hong Kong, Macao and Taiwan areas.
APPLICATION
LCD screens can be used in many fields, including mobile phones, digital cameras, camcorders, car navigation systems, control panels and other automotive instruments, PDAs, portable computers, notebook computer displays, desktop computer monitors, etc.
CERTIFICATION
SPECIFICATION
| ITEM | VALUE |
| EFFECTIVE DISPLAY AREA | 30.7*23 |
| DRIVE IC | UC1705 |
| Perspective | TransFLECTIVE |
| Module area | 33.7×30.5×1.8 |
| DUTY/BIAS | 1/64 duty, 1/9 bias |
| Connector | COG |
| Operating temperature | -10~ +60 |
| Storage temperature | -20~ +70 |
| VIEWING DIRECTION | 12.00 |
| BACK LIGHT COLOR | white side backlight |
| Display type | STN/NEGATIVE |
| Operating voltage | 8.7V |
SHIPMENT
PACKAGE
NOTICE
FAQ
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in case of non-human injury, we will provide free repair or replacement, including delivery costs.Beyond warranty: we provide repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can design and produce the appearance, logo, material, color, size,installation method and so on according to customers' requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before delivery.
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within 3-7 days;No inventory for 20-25 days;For customized samples and bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no free samples.If you need to order a sample for inspection, we would like you to pay the sample fee and freight, and the sample will be sent to you upon receipt of payment.
