Product Details
Place of Origin: CHINA
Brand Name: QiHang
Certification: CE ROHS
Model Number: JXL-12864F
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: USD0.1 - USD10
Packaging Details: Blister packing within carton
Delivery Time: 20-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100,000 pieces/month
Display Model: |
TRANSMISSIVE And POSITIVE |
LCD Mode: |
FSTN Mode LCD |
Display Format: |
128*64 |
Driver IC:: |
ST7565R |
Input Data: |
Parallel Or Serial Data Input From MPU |
Viewing Angle: |
6.0 |
Storage Temperature:: |
-30℃~80℃ |
Operating Temperature: |
-20℃~ +70℃ |
Multiplexing Ration: |
1/65Duty , 1/9Bias |
Display Model: |
TRANSMISSIVE And POSITIVE |
LCD Mode: |
FSTN Mode LCD |
Display Format: |
128*64 |
Driver IC:: |
ST7565R |
Input Data: |
Parallel Or Serial Data Input From MPU |
Viewing Angle: |
6.0 |
Storage Temperature:: |
-30℃~80℃ |
Operating Temperature: |
-20℃~ +70℃ |
Multiplexing Ration: |
1/65Duty , 1/9Bias |

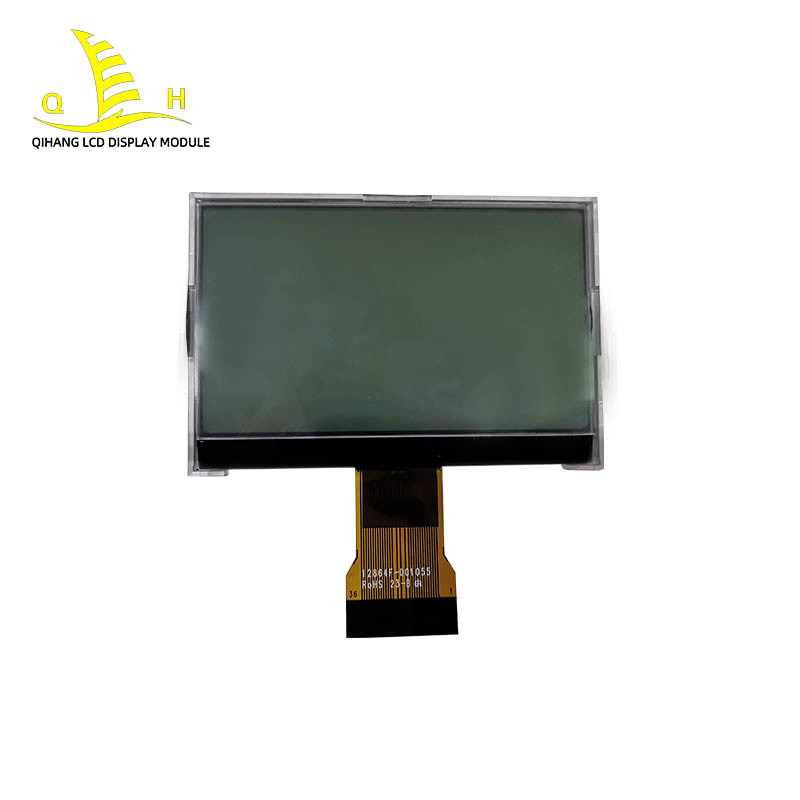

ST7920 Driver IC LCD Module, FSTN Transmissive Display, Shenzhen Qihang Electronics
Product Description
Specification
| ITEM | VALUE |
| TYPE |
TRANSMISSIVE and POSITIVE
|
| Display Size | 79*28*0.8 |
| Supplier Type | manufacturer |
| Place of Origin | China |
| Brand Name | Shenzhen Qihang Electronics |
| Display mode |
FSTN Mode LCD
|
|
Viewing Area (W*H)
|
65.50X38.00
|
| Size |
68.70X(46.40+27.80)X2.80
|
|
Active Area (W*H)
|
60.775X32.935
|
|
Dot Pitch (W*H)
|
0.475X0.515
|
| Viewing Angle | 6:00 |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -30℃~80℃ |
| Driver IC | ST7565R |
|
Multiplexing Ration
|
1/65Duty , 1/9Bias
|
Company Profile
APPLICATION
Code-breaking LCD screens can be used in many fields, such as telephones, calculators, electronic watches, digital multimeters, and electronic game consoles. Dot-matrix LCD screens can be used in electricity, water, gas meters; telephone billing devices, instruments and meters, computer fuel dispensers, banking systems, communication equipment, attendance systems, repeaters, taxation systems, etc.
Certifications
Shipment
FAQ
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in case of non-human injury, we will provide free repair or replacement, including delivery costs.Beyond warranty: we provide repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can design and produce the appearance, logo, material, color, size,installation method and so on according to customers' requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before delivery.
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within 3-7 days;No inventory for 20-25 days;For customized samples and bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no free samples.If you need to order a sample for inspection, we would like you to pay the sample fee and freight, and the sample will be sent to you upon receipt of payment.
