7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module

7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module

  • High Light

    5.0v serial lcd display module

    ,

    6 o'clock serial lcd display module

    ,

    6 o'clock spi lcd display module

  • Material
    STN (Blue)
  • Operating Temp
    -20℃ - 70℃
  • Storage Temp
    -30℃ - 80℃
  • Custom
    YES
  • Drive Mode
    1/16 Duty, 1/5 Bias
  • Viewing Direction
    6 O'clock
  • LCD Operating Voltage
    5.0 V
  • Polarizer
    Positive
  • Name
    7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module
  • Warranty
    12months
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Qihang
  • Certification
    ROHS/CE
  • Model Number
    JXL-1601
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiable
  • Packaging Details
    Tray , Standard carton
  • Delivery Time
    10-15 Days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
  • Supply Ability
    300000 Per Month

7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module

7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module

Product Details

Name 7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module
Applicaion All kinds of meter
Display Content
16*1 DOTS 1 LINE
Operating voltage 3.3V / 5.0V
Driving method according to your request
Viewing angle 6 H
LCD IC SPLC780
Display mode Transflective / Negative
View Area 64.5 (H) x 13.8 (V) mm
Outside Dimensions 80 (H) x 36 (V)x 9 (D) mm
Voltage driving Dynamic or static
Connector Pin
Front Polarizer Transmissive
Back Polarizer Transflective
Package COB
OEM/ODM Accecpted
System design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
Backlight LED Blue
LCD Module type Timing Module
Sample lead time 3-7 working days
Customize lead time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS





Product Show

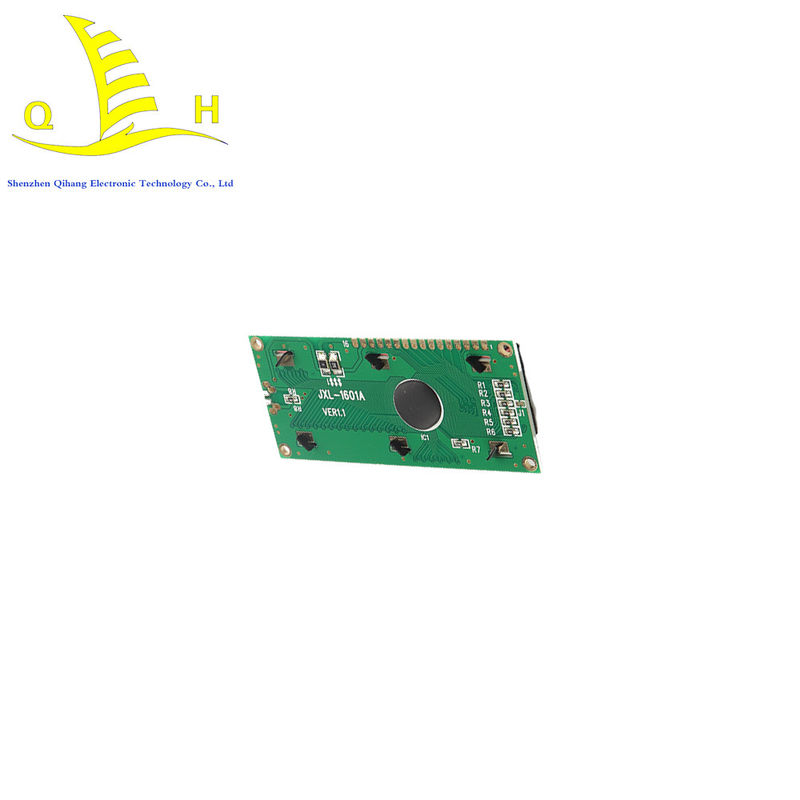

7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module 0

7 Segment LCD STN HTN FSTN 6 O Clock Lcd Display Module 1

Application:

Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry



Our Service

We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.

1.We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.

2.Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

3.Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

Advantage

1.LCD & LCM Display: Design, Manufacturing LCD & LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.
2.Guarantee: In order to ensure our products' quality, each process has been aranged QC. And there are many advanced machines introduced to check the products quality. The goods will have a ramdom test before delivery. One year for warranty under normal use.

FAQ

1.Q: How long can I expect to get the sample?

A:Contact with drawing: 2-3 days Sample time: 10-15 business days



2.Q: Are you manufactory or trade company?

A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN, VA monochrome LCD, LED backlights, LCD modules more than 8 years in Shenzhen, China ! Our advanced full set equipments make sure good quality and competitive price!



3.Q: How can I get the samples?

A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



4.Q:Will you offer free sample?

A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.



5.Q:How to place orders ?

A:If you confirm samples ok, Please send us your purchase order by Email or Fax, then we will send you an Invoice for deposit payment. We need to know the following information of your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.



4)Forwarder's contact details if you have any in China.



6.Q: Can you design the lcd in acccordance with our demand?

A:Sure.We will give you the best tooling charge.



7.Q:How long of mass production ?

A: 25-30 business days. It depends on different order quantities and part number.
