Product Details
Place of Origin: Shenzhen, China
Brand Name: Qihang
Certification: ROHS/CE
Model Number: JXL-0.96"OEL9M0083-B-E
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Tray , Standard carton
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability: 300000 Per Month
Resolution: |
128(H) X 64(V) |
Diagonal Size: |
0.96 Inch |
Active Area (mm): |
21.740 Mm X 11.175 Mm |
Panel Outline Dimension (mm): |
26.70 Mm X 19.26 Mm |
Pixel Pitch: |
0.170 Mm X 0.170 Mm |
Pixel Side: |
0.150 Mm X 0.150 Mm |
Weight: |
TBD |
Duty: |
1/64 |
Thickness: |
1.45mm |
Drive IC: |
SH1106G |
Name: |
OEM OEL9M0083 12864 0.96" Oled Display Panel Module |
Resolution: |
128(H) X 64(V) |
Diagonal Size: |
0.96 Inch |
Active Area (mm): |
21.740 Mm X 11.175 Mm |
Panel Outline Dimension (mm): |
26.70 Mm X 19.26 Mm |
Pixel Pitch: |
0.170 Mm X 0.170 Mm |
Pixel Side: |
0.150 Mm X 0.150 Mm |
Weight: |
TBD |
Duty: |
1/64 |
Thickness: |
1.45mm |
Drive IC: |
SH1106G |
Name: |
OEM OEL9M0083 12864 0.96" Oled Display Panel Module |

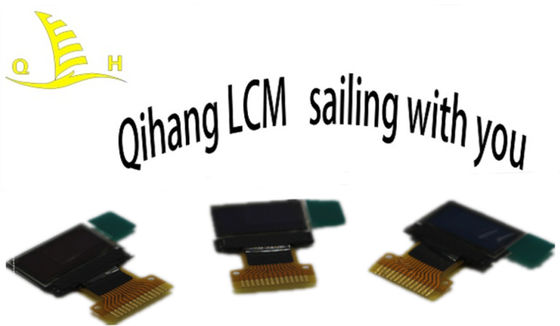

Factory Offer OEM OEL9M0083 12864 0.96" Oled Display Panel Module
Quick Details
|
Items |
Specification |
Unit |
|
Diagonal Size |
0.96 |
Inch |
|
Resolution |
128(H) x 64(V) |
Dots |
|
Active Area |
21.740 mm x 11.175 mm |
mm 2 |
|
Outline Dimension |
26.70 mm x 19.26 mm |
mm 2 |
|
Pixel Pitch |
0.170 (W) x 0.170 (H) |
mm 2 |
|
Pixel Size |
0.150 (W) x 0.150 (H) |
mm 2 |
|
Driver IC |
SH1106G |
- |
|
Display Color |
Blue |
- |
|
Gray Scale |
1 |
Bit |
|
Interface |
Parallel / Serial/IIC |
|
|
IC Package Type |
COG with Flex for ZIF |
- |
|
Module Connecting Type |
ZIF |
- |
|
Thickness |
1.45±0.15 |
mm |
|
Weight |
TBD |
g |
|
Duty |
1/64 |
- |
| Operating Temperature | -20℃-70℃ | |
| Storage Temperature | -30℃-80℃ |
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (Blue)
3) Drive Duty: 1/64 Duty
4) Wide viewing angel: >160 degree
5) Brightness: 150nits
6) Dark Room Contrast: >2000:1
7) Diagonal Size: 0.96 inch
Product replacement and warranty
If you have any using problem of the products which buy from Qihang, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.
If you have any prodcut quality problem, you can send it back to us with the original condition,we will repair or exchange new one for you.
Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.
Sample Policy
Contact us for information regarding our sample policy
Technical Service
If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.
Packing & Delivery
FAQ
Q.: What is your business type?
A: We design, produce and export our products.
Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.
Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and the period of year.
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: Welcome!
Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is in Europe, North America and Asia.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs / lot, however we accept less quantities for the trial orders.
Q: What are the payment terms?
A:Our payment terms are T/T (telecom transfer) 30% in advance and T/T 70% before shipment.
Product drawing
