Home > products > OLED Display Module > SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module

SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module

Product Details

Place of Origin: Shenzhen, China

Brand Name: Qihang

Certification: ROHS/CE

Model Number: JXL-OLED3.12

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Tray , Standard carton

Delivery Time: 10-15 Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability: 300000 Per Month

Get Best Price
Highlight:

256x64 Dots Oled Screen Module

,

3.12" Oled Screen Module

,

SPI Monochrome OLED Module

Resolution:
256 X 64 Dots
Diagonal Size:
3.12 Inch
Active Area (mm):
76.78 (W) X 19.18 (H)
Panel Outline Dimension (mm):
88.00 (W) X27.80 (H)
Pixel Pitch:
0.30 (W) X 0.30 (H)
Pixel Side:
0.28(W) X 0.28 (H)
Display Color:
Yellow
Duty:
1/64
Interface:
Parallel / SPI
Drive IC:
SSD1322UR1
Resolution:
256 X 64 Dots
Diagonal Size:
3.12 Inch
Active Area (mm):
76.78 (W) X 19.18 (H)
Panel Outline Dimension (mm):
88.00 (W) X27.80 (H)
Pixel Pitch:
0.30 (W) X 0.30 (H)
Pixel Side:
0.28(W) X 0.28 (H)
Display Color:
Yellow
Duty:
1/64
Interface:
Parallel / SPI
Drive IC:
SSD1322UR1

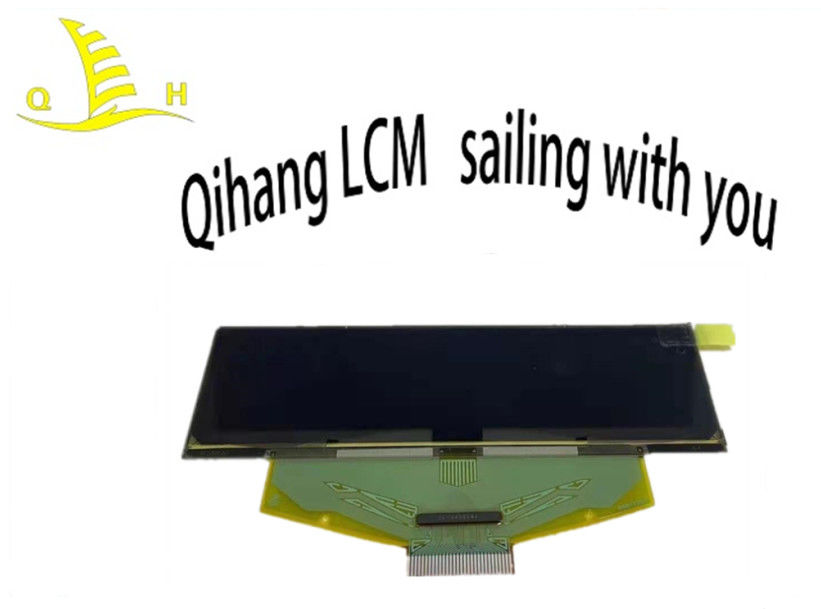

SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module

SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module



Quick Details



Items

Specification

Unit

Diagonal Size

3.12

Inch

Resolution

256 x 64

Dots

Active Area

76.78 (W) x 19.18 (H)

mm 2

Outline Dimension

88.00 (W) x27.80 (H)

mm 2

Pixel Pitch

0.30 (W) x 0.30 (H)

mm 2

Pixel Size

0.28(W) x 0.28 (H)

mm 2

Driver IC

SSD1322UR1

-

Display Color

Yellow

-

Gray Scale

1

Bit

Interface

Parallel / SPI



IC Package Type

COG with Flex for ZIF

-

Module Connecting Type

ZIF

-

Thickness

1.45±0.15

mm

Weight

TBD

g

Duty

1/64

-
Operating Temperature -40℃-70℃
Storage Temperature -40℃-85℃


3.12" 25664 Dots OLED Screen Display Module



Display Specifications

1)
Diagonal Size: 1.32 inch
2) Dark Room Contrast: >2000:1
3) Drive Duty: 1/64 Duty
4) Wide viewing angel: >160 degree
5) Brightness: 350 cd/m2
6)
Display Color: Monochrome (Yellow)

7) Display Mode: Passive Matrix



Quality to be ensure


Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;

All the panels are 100% original and brand new, no fake panels exists, so from Shenzhen qihang electronic technology company you can enjoy the real panels directly from original factory;




Super After-Sale service:


Shenzhen qihang electronic technology company will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;



Sample Policy



Welcome to contact us for information regarding our sample policy



Packing & Delivery



1). Delivery Details: 3 to 30 days. The delivery fee is up to the weight and volume of the products.
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5).
Payment Terms: T/T, Paypal

SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module 0



long-term partner


Products are sold to more than 20 countries, so from Shenzhen qihang electronic technology company you can get more stable supplying promise;

SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module 1

NOTE:



1. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded.



Functional operation should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect reliability.



2. The defined temperature ranges do not include the polarizer. The maximum withstood temperature of the polarizer should be 80°C.



FAQ



Q.: What is your business type?
A: We design, produce and export our products.

Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.

Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and the period of year.



Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.

Q: Can we visit your factory?
A: Welcome!

Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is in Europe, North America and Asia.


Q: What are the payment terms?
A:Our payment terms are T/T (telecom transfer) 30% in advance and T/T 70% before shipment.


Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs / lot, however we accept less quantities for the trial orders.

Product drawing

SSD1322UR1 SPI 3.12" 25664 Dots OLED Screen Display Module 2
